Ruggedized PeeWee Series High Voltage Connector - 12-18 kVDC
Ruggedized PeeWee Series High Voltage Connector - 12-18 kVDC
SKU:HIG-3fa896
Get reliable high voltage connectivity with the Ruggedized PeeWee Series Connector, designed for demanding applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ruggedized PeeWee Series High Voltage Connector - 12-18 kVDC
$49.99
Quantity: 1
Claim Your Seller Account
Ruggedized PeeWee Series High Voltage Connector - 12-18 kVDC
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ruggedized PeeWee Series High Voltage Connector features a double-ended receptacle with a .070 Si-coated FEP wire, suitable for applications in High Voltage Power Supplies, TWT/TWTA, Semiconductor Wafer Processing, and more. With a current rating of 5 Amp and operating temperature range of -55 to 125 °C, this connector offers reliable performance in demanding environments. Tested at 18 kVDC, this standard-compliant connector is compatible with various peeWee and PWR connectors, making it ideal for commercial, military, and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic

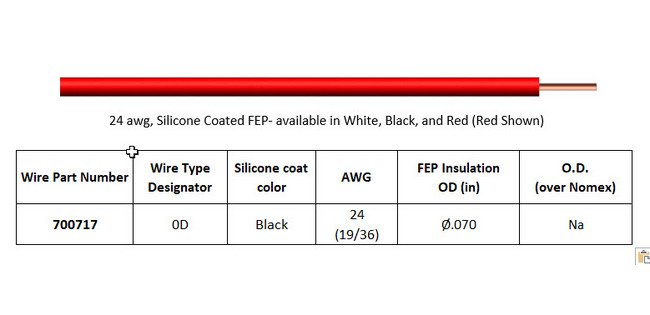

Cable Wire Properties Wire Diameter
Ã.070 in
Cable Wire Properties Wire Insulation
Silicone coated FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, Straight, Double-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
