Ruggedized PeeWee Series High Voltage Connector 12-18 kVDC
Ruggedized PeeWee Series High Voltage Connector 12-18 kVDC
SKU:HIG-22ac15
High Voltage Double-ended Receptacle for extreme altitude applications, 18 kVDC test voltage, ideal for Radar Systems & Medical instrumentation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Ruggedized PeeWee Series High Voltage Connector 12-18 kVDC
$49.99
Quantity: 1
Claim Your Seller Account
Ruggedized PeeWee Series High Voltage Connector 12-18 kVDC
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Ruggedized PeeWee Series High Voltage Connector is a double-ended receptacle designed for high altitude applications up to 70,000 ft. With a current rating of 5 Amp and test voltage of 18 kVDC, this connector ensures reliable performance in extreme conditions. Featuring thermo-plastic insulator and silicone rubber encapsulation, it meets the standards for High Voltage Single Pin Connectors. Ideal for High Voltage Power Supplies, Radar Systems, and Medical instrumentation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
High Voltage Power Supplies Traveling Wave Tubes (TWT / TWTA) Semi-Conductor Wafer Processing and Test Equipment High-End Industrial Manufacturing/Test Equipment Cathode Ray Tubes (CRT Displays) Helmet mounted systems (HUDâs) Laser and Target Designators Commercial and Military Radar Systems Night Vision Goggles High Energy Physics Research Medical instrumentation and equipment Other space and weight-sensitive applications
Body Properties Coupling Nut Material
n/a
Body Properties Coupling Style
Push-Pull
Cable Wire Properties Encapsulation
silicone rubber
Cable Wire Properties Insulator Material
ThermoPlastic
Cable Wire Properties Wire Diameter

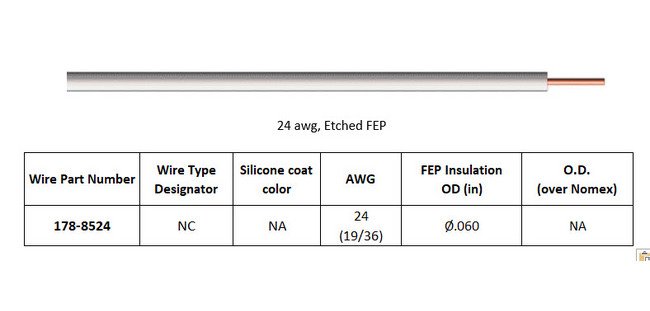

Ã.060 in
Cable Wire Properties Wire Insulation
Etched FEP
Contact Properties Contact Diameter Pin Diameter
Ã.030 in
Contact Properties Contact Size
24 AWG
Specifications Altitude Reduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle, R/A, Double-ended C/A
Specifications Current Rating
5 Amp
Specifications Export Classification
EAR 9A991.d
Specifications Ground Level Rating
Sea Level to 10,000 ft
Specifications Mating Compatibility
Mates with all push-pull standard PeeWee and PWR connectors and cable assemblies
Specifications Operating Temperature
-55 to 125 ºC
Specifications Panel Mounting Style
n/a
Specifications Sealed Receptacle
No
Specifications Series
Ruggedized Pee-Wee
Specifications Standardnon Standard
Standard
Specifications Test Voltage
18 kVDC
Specifications Voltage Rating
12kVDC | 18 kVDC
