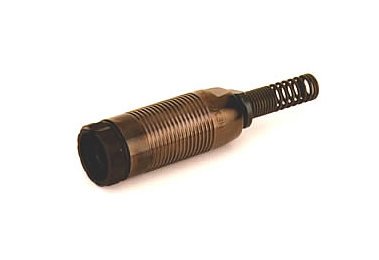

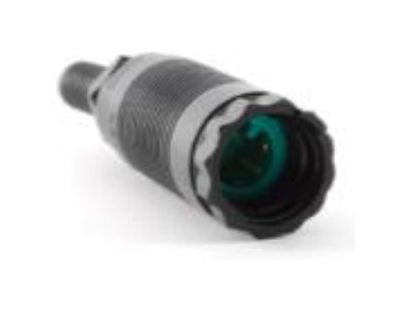

The Ruggedized Waterproof Shielded Jack Connector is a high-performance solution designed for severe environments in commercial, military, and industrial applications. With 7 gold-plated brass conductors, this jack features a waterproof design capable of functioning in up to 6 feet of water. The connector offers wire strain relief, solder terminals, and a self-cleaning feature with wiping-action contacts. Ideal for C4I Systems, Military Vehicles, and Telecommunications Equipment, this connector meets rigorous standards for durability and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
C4I Systems Military Vehicles Commercial Aircraft Telecommunications Equipment Missiles and Ordnance Medical Equipment Commercial / Industrial Equipment
Features 0
Plug and Jack breakaway connectors designed to function in severe environments Watertight in up to 6 feet of water Molded-in wiping-action contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Designed for multiple cable diameters Miniature versions are 50% smaller than standard connectors while maintaining many of the same performance characteristics
Options 0
7- or 10-pin (miniature version only) contacts Solder-type contacts or insulation-piercing contacts Wire strain relief or over-molded versions available for all plugs and jacks Panel mount versions are available for both front- and rear-mount panels Shielding is available in all connector choices All standard connector options also available in miniaturized versions
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
