RV2 Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) Inlet Port and 1/8 Inch (in) Size Female National Pipe Thread (FNPT) Outlet Port 2-Way Metal Ball Valve
RV2 Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) Inlet Port and 1/8 Inch (in) Size Female National Pipe Thread (FNPT) Outlet Port 2-Way Metal Ball Valve
SKU:RV2-f82e2c
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
RV2 Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) Inlet Port and 1/8 Inch (in) Size Female National Pipe Thread (FNPT) Outlet Port 2-Way Metal Ball Valve
$49.99
Quantity: 1
Claim Your Seller Account
RV2 Series 1/8 Inch (in) Size Male National Pipe Thread (MNPT) Inlet Port and 1/8 Inch (in) Size Female National Pipe Thread (FNPT) Outlet Port 2-Way Metal Ball Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

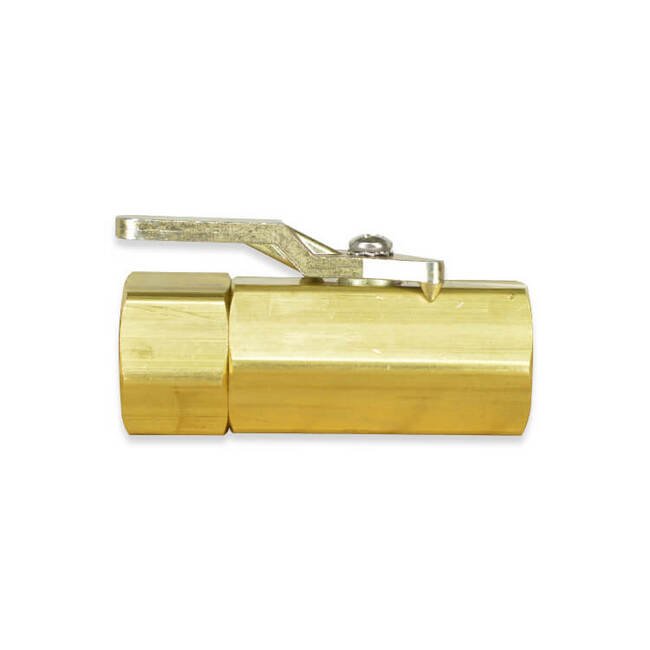

This is a solid chrome-plated brass mini ball valve. This valve works in both directions because of a double seal system. It has a blow-out-proof Brass stem. The 1/4" turn handle has a mechanical stop. The maximum working pressure is 235 psi but will handle 300 psi at 75 ºF. Available in female by female and male by female.
Product Specifications
Note
If you do not see exactly what you are looking for, please contact our sales department.This product is not lead-free.
Technical Specs Inlet Port Connection Type
Male National Pipe Thread (MNPT)
Technical Specs Inlet Port Size
1/8 in
Technical Specs Material
Chrome Plated Brass
Technical Specs Maximum Operating Pressure
235 psi
Technical Specs Outlet Port Connection Type
Female National Pipe Thread (FNPT)
Technical Specs Outlet Port Size
1/8 in
Technical Specs Series
RV2
Technical Specs Temperature Range
32 to 176 ºF
Technical Specs Valve Type
Solid Mini Taper Ball Valve
