RVP Check Valves - Manifold Mounted Flow Control Valves
RVP Check Valves - Manifold Mounted Flow Control Valves
SKU:ACC-ab441e
RVP Check Valves - Durable, High-Performance Flow Control Valves for Industrial Applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
RVP Check Valves - Manifold Mounted Flow Control Valves
$99.99
Quantity: 1
Claim Your Seller Account
RVP Check Valves - Manifold Mounted Flow Control Valves
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

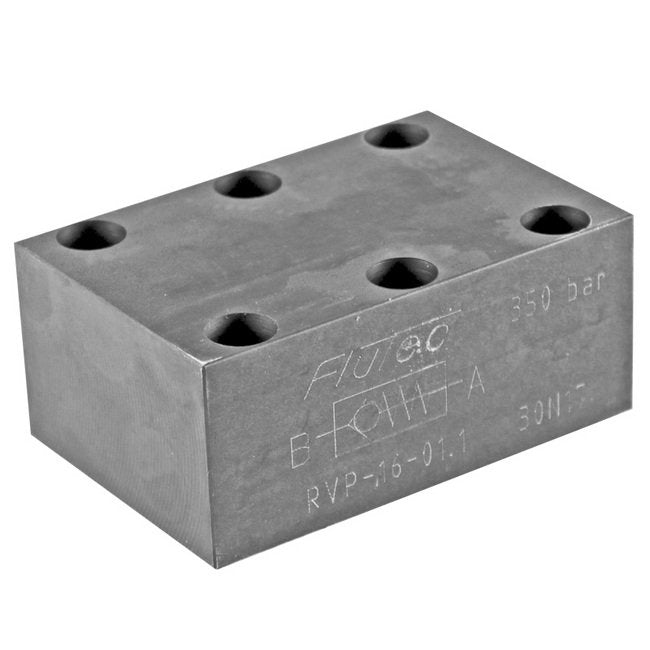

The RVP Check Valves are precision-engineered flow control valves designed for optimal performance in industrial settings. Built with carbon steel housing and a metal-to-metal seal design, these valves ensure durability and reliable operation. With a cracking pressure of 1.7 bar and an operating pressure of up to 345 bar, they are suitable for a wide range of applications. The manifold mounting feature provides easy installation and maintenance, enhancing efficiency. Please note that these valves are not recommended for high-cycle applications. Verify critical dimensions as needed for your specific requirements.
Product Specifications
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
1.7 bar | 25 psi
Specifications Dimension L
7.72 in | 196 mm
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86 F30 C
335 SUS
Specifications Model Code Description
RVP-30-01.X- 25
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Sizes
30
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Short Description
RVP Check valves
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.1 kg | 0.22 lb
