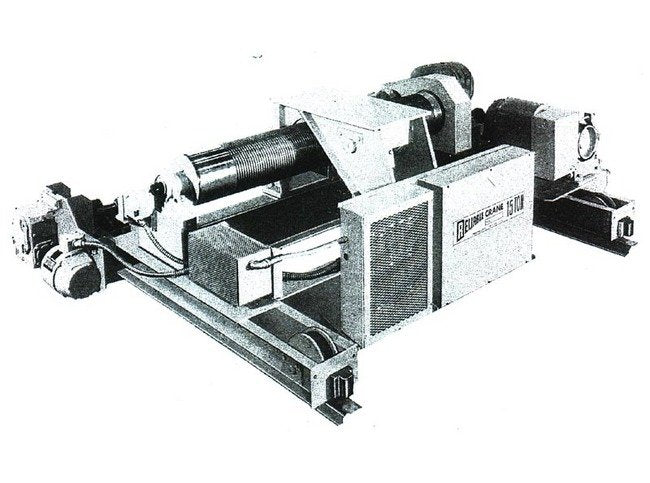

The Model 'RW' Heavy Built-Up Trolley Hoists are Class 'D' rated and engineered for heavy-duty industrial applications. Featuring NEMA rated contactors, double reeving, and a plumb hook lift, these hoists ensure reliable and precise lifting operations. The trolley hoists are equipped with a full-depth drum grooving, upper and lower limit switches, and a weight-operated electric disc brake for enhanced safety. With a one-piece heavy steel weldment trolley frame, high-quality steel components, and various speed models available, these hoists provide consistent performance and durability in demanding work environments.
Product Specifications
Specifications Capacity Range
5 Tons | 7 1/2 Tons | 10 Tons | 15 Tons | 20 Tons | 25 Tons | 30 Tons
Specifications Hoist Speed
Single | Two | Three | Four
Standard Features 0
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
