RW Heavy Duty Hoist Trolley
RW Heavy Duty Hoist Trolley
SKU:RIG-4cd31c
Robust RW Heavy Duty Hoist Trolley for safe and efficient heavy lifting operations, compliant with institutional standards.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
RW Heavy Duty Hoist Trolley
$7,999.99
Quantity: 1
Claim Your Seller Account
RW Heavy Duty Hoist Trolley
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

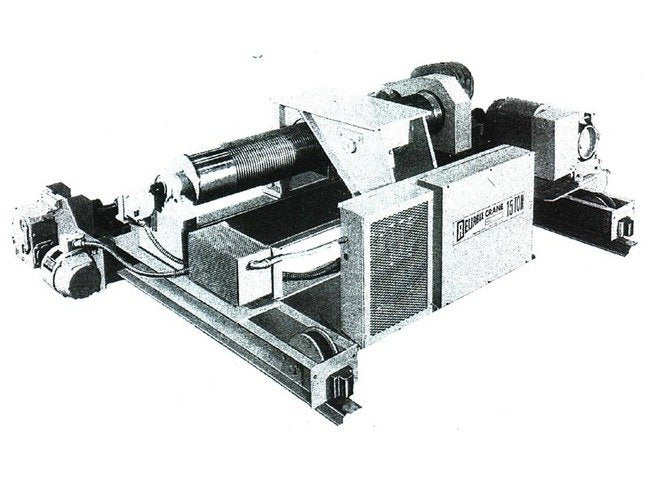

The RW Heavy Duty Hoist Trolley is a robust solution designed for heavy lifting tasks, featuring a precision steel frame, 4140 steel wheels, and a fabricated steel drum with deep machined grooves for superior performance. With a 10-ton capacity, double reeving for true vertical lift, and a range of speed models, this hoist trolley ensures efficient and safe operations. It also includes various safety features like upper and lower limit switches, motor brakes, and steel enclosed components. Additionally, this trolley complies with federal, DoD, and industry-specific standards to meet institutional procurement requirements.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
10 Tons

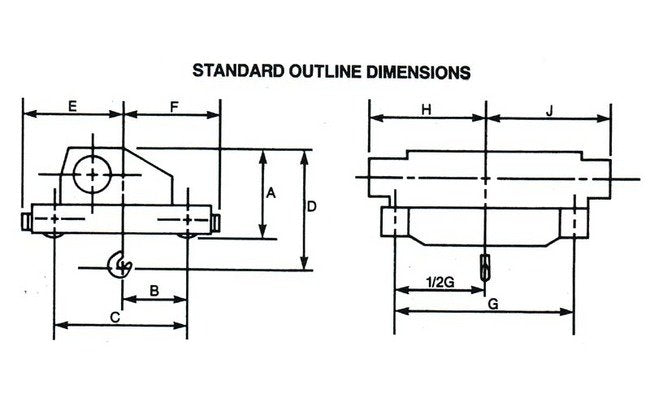

Specifications Dimension A
27 inches
Specifications Dimension B
27 1/2 inches
Specifications Dimension C
4'-6"
Specifications Dimension D
38 inches
Specifications Dimension E
35 inches
Specifications Dimension F
38 inches
Specifications Dimension G
6'-0" inches
Specifications Dimension H
4'-7"
Specifications Hoist Single Speed
10 HP
Specifications Hoist Speed Single Speed
12 FPM
Specifications Hoist Speed Two Speed
8/24 FPM
Specifications Hoist Two Speed
3.3/10 HP
Specifications Lift
22 ft.
Specifications Reeving
4PD-3/8"
Specifications Trolley Gage
6'-0"
Specifications Trolley Motor
1 HP
Specifications Trolley Speed
55
Specifications Weight
4000 lbs.
Specifications Wheel Diameter
8 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
