RW Heavy Duty Hoist Trolleys - 25 Ton Capacity
RW Heavy Duty Hoist Trolleys - 25 Ton Capacity
SKU:RIG-7d8586
Heavy-duty hoist trolleys for safe and efficient vertical lifts. 25-ton capacity, precision steel construction, high-performance hoist motor brake system.
Regular price
$13,499.99
Regular price
Sale price
$13,499.99
Unit price
per
Initiate Order
RW Heavy Duty Hoist Trolleys - 25 Ton Capacity
$13,499.99
Quantity: 1
Claim Your Seller Account
RW Heavy Duty Hoist Trolleys - 25 Ton Capacity
$13,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

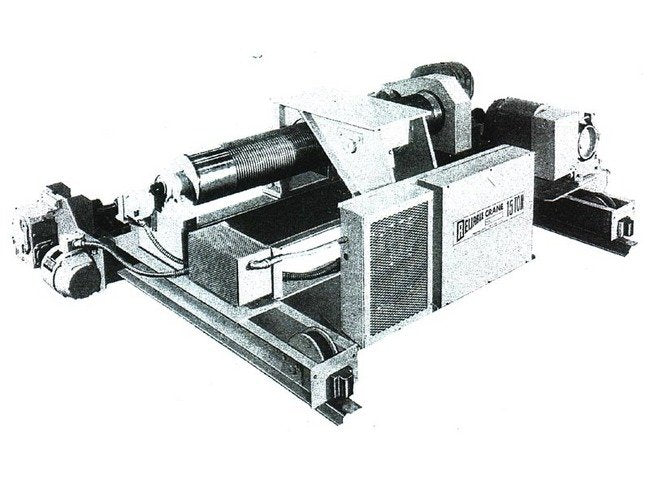

Meet your heavy lifting needs with the Model 'RW' Heavy Duty Built-Up Hoist Trolleys featuring a sturdy steel weldment frame, 4140 steel wheels, and a high-performance hoist motor brake system. With precision engineering and compliance with industry standards, this trolley ensures safe and efficient vertical lifts. The trolley boasts a 20 ft. lift capacity, 30 HP single-speed hoist, and 10/30 HP two-speed hoist options for flexibility in operations.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
25 Tons

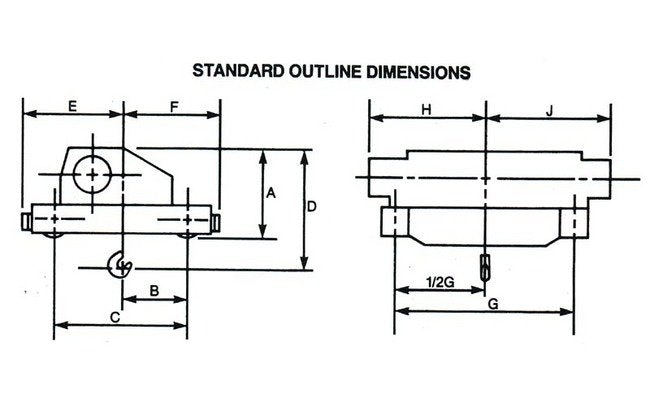

Specifications Dimension A
42 inches
Specifications Dimension B
29 inches
Specifications Dimension C
5'-9"
Specifications Dimension D
75 inches
Specifications Dimension E
51 inches
Specifications Dimension F
44 inches
Specifications Dimension G
6'-0" inches
Specifications Dimension H
5'-4"
Specifications Dimension J
4'-7"
Specifications Hoist Single Speed
30 HP
Specifications Hoist Speed Single Speed
20 FPM
Specifications Hoist Speed Two Speed
7/20 FPM
Specifications Hoist Two Speed
10/30 HP
Specifications Lift
20 ft.
Specifications Reeving
4PD-9/16"
Specifications Trolley Gage
6'-0"
Specifications Trolley Motor
2 HP
Specifications Trolley Speed
55
Specifications Weight
7550 lbs.
Specifications Wheel Diameter
12 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
