RW Heavy Duty Hoist Trolleys
RW Heavy Duty Hoist Trolleys
SKU:RIG-6a4033
Experience superior performance with RW Heavy Duty Hoist Trolleys - Reliable, Durable, and Safe for Heavy Loads.
Regular price
$8,999.99
Regular price
Sale price
$8,999.99
Unit price
per
Initiate Order
RW Heavy Duty Hoist Trolleys
$8,999.99
Quantity: 1
Claim Your Seller Account
RW Heavy Duty Hoist Trolleys
$8,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

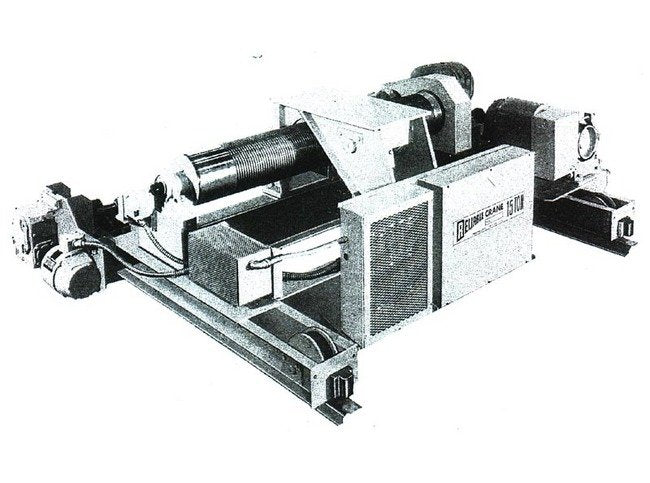

The RW Heavy Duty Hoist Trolleys are engineered for exceptional performance in demanding industrial environments. With a robust one-piece heavy steel weldment trolley frame and precision 4140 steel trolley wheels, these trolleys ensure reliable vertical lift operations. Featuring high carbon alloy steel sheaves, 10,000-hour L-10 bearing life, and a fabricated steel drum with deep machined grooves, these trolleys offer superior durability and longevity. The trolleys come with a range of safety features including upper and lower geared limit switches, weight-operated upper safety limit switch, and mechanical and regenerative braking. Designed for efficiency and safety, these trolleys are ideal for heavy-duty applications.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
30 Tons

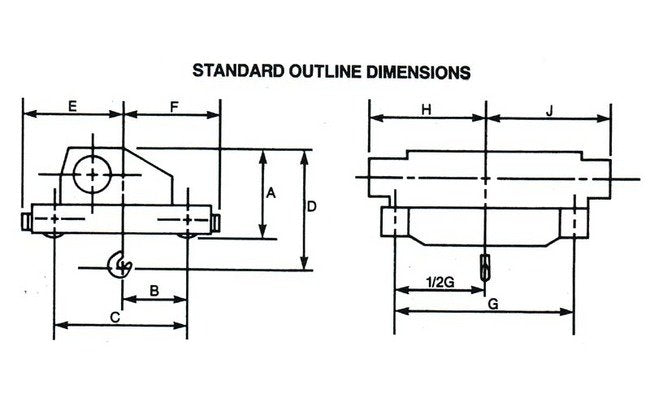

Specifications Dimension A
42 inches
Specifications Dimension B
29 inches
Specifications Dimension C
5'-9"
Specifications Dimension D
76 inches
Specifications Dimension E
51 inches
Specifications Dimension F
44 inches
Specifications Dimension G
7'-0" inches
Specifications Dimension H
5'-10"
Specifications Dimension J
5'-1"
Specifications Hoist Single Speed
20 HP
Specifications Hoist Speed Single Speed
8 FPM
Specifications Hoist Speed Two Speed
3/8 FPM
Specifications Hoist Two Speed
6.7/20 HP
Specifications Lift
20 ft.
Specifications Reeving
4PD-5/8"
Specifications Trolley Gage
7'-0"
Specifications Trolley Motor
3 HP
Specifications Trolley Speed
55
Specifications Weight
9100 lbs.
Specifications Wheel Diameter
12 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
