RW Heavy Duty Hoist Trolleys - 5 Ton Capacity
RW Heavy Duty Hoist Trolleys - 5 Ton Capacity
SKU:RIG-29d185
Heavy Duty Built-Up Hoist Trolleys with precision engineering and top-grade materials for safe and efficient vertical lifting.
Regular price
$5,399.99
Regular price
Sale price
$5,399.99
Unit price
per
Initiate Order
RW Heavy Duty Hoist Trolleys - 5 Ton Capacity
$5,399.99
Quantity: 1
Claim Your Seller Account
RW Heavy Duty Hoist Trolleys - 5 Ton Capacity
$5,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

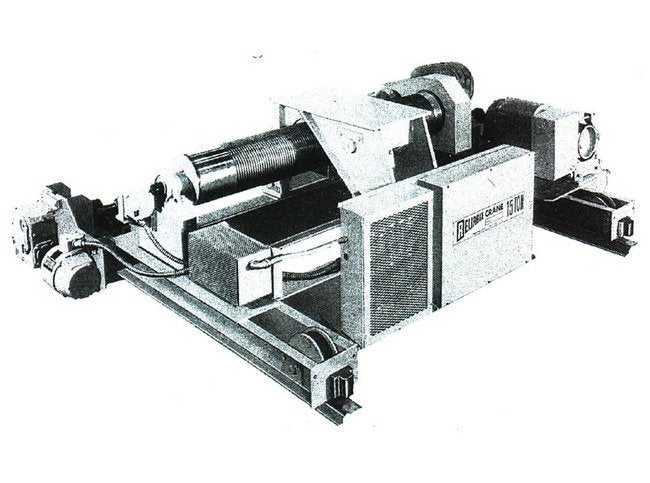

The Model RW Heavy Duty Built-Up Hoist Trolleys by Rightway Hoists are engineered for precision and durability, featuring a one-piece heavy steel weldment trolley frame with 4140 steel trolley wheels. This trolley boasts a 10,000-hour L-10 bearing life, high carbon alloy steel sheaves, and multiple speed options for optimal performance. With safety features like upper and lower limit switches, NEMA rated components, mechanical and regenerative braking systems, and weight-operated upper safety limit switch, this hoist trolley ensures reliable and secure vertical lifting. Ideal for heavy-duty industrial applications, this trolley is designed to meet rigorous institutional procurement standards.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
5 Tons

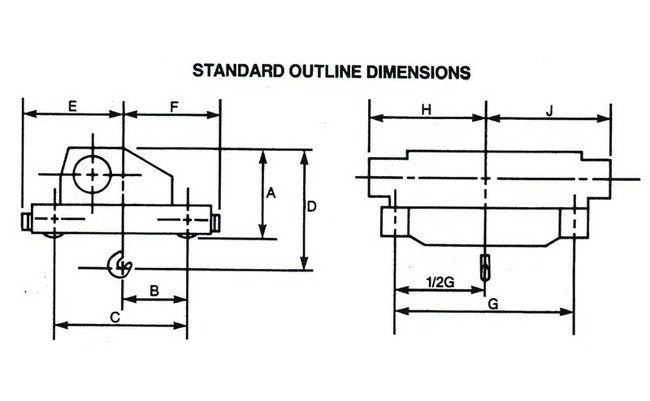

Specifications Dimension A
24 1/2 inches
Specifications Dimension B
28 1/2 inches
Specifications Dimension C
4'-6"
Specifications Dimension D
37 1/2 inches
Specifications Dimension E
33 1/2 inches
Specifications Dimension F
39 1/2 inches
Specifications Dimension G
6'-0" inches
Specifications Dimension H
4'-6"
Specifications Hoist Single Speed
10 HP
Specifications Hoist Speed Single Speed
24 FPM
Specifications Hoist Speed Two Speed
8/24 FPM
Specifications Hoist Two Speed
3.3/10 HP
Specifications Lift
44 ft.
Specifications Reeving
2PD-3/8"
Specifications Trolley Gage
6'-0"
Specifications Trolley Motor
1/2 HP
Specifications Trolley Speed
65
Specifications Weight
3700 lbs.
Specifications Wheel Diameter
6 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
