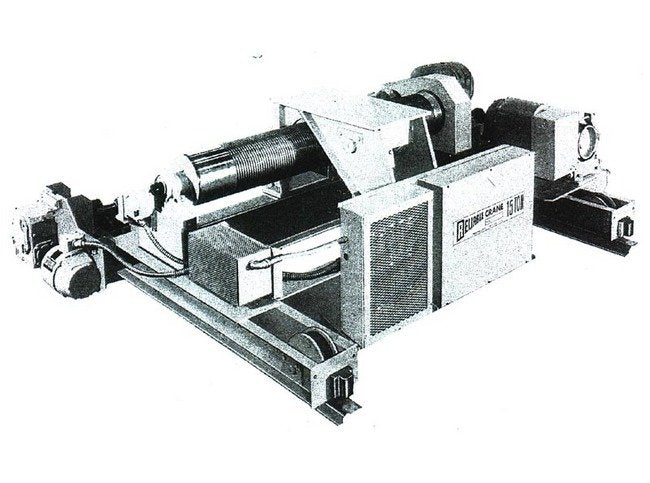

RW Heavy Duty Hoist Trolleys
RW Heavy Duty Hoist Trolleys
SKU:RIG-578beb
Experience industrial-grade strength with RW Heavy Duty Hoist Trolleys. Precision, power, and compliance for heavy-duty needs.
Regular price
$15,999.00
Regular price
Sale price
$15,999.00
Unit price
per
Initiate Order
RW Heavy Duty Hoist Trolleys
$15,999.00
Quantity: 1
Claim Your Seller Account
RW Heavy Duty Hoist Trolleys
$15,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The RW Heavy Duty Hoist Trolleys are engineered for industrial strength and precision. With a 30-ton capacity, 27 ft. lift, and 10,000-hour L-10 bearing life, these trolleys ensure true vertical lift. Featuring a steel drum with machined grooves, high carbon alloy steel sheaves, and multiple speed models, they offer versatility and reliability for heavy-duty applications. Compliant with industry standards and equipped with safety features, including limit switches, enclosed blocks, and safety latches, these trolleys meet the stringent requirements of government and institutional procurement.
Product Specifications
Optional Features 0
Rubber or Spring Bumpers Longer Hook Lifts Pushbutton Station Eddy Current Variable Speed Hoist Control Three and Four Fixed Hoist Speeds with Constant Torque Solid State Soft Start Trolley Control Two (2) Speed or Variable Speed Trolley Centre NEMA 3R, 4 or 12 Control Enclosures DC Motors and Controls Explosion Proof Motors and Controls Spark Resistant Construction Power Circuit Upper Limit Switch Special Girder Gauge Drum Mounted Mechanical Load and Overspeed Safety Brake
Specifications Capacity
30 Tons

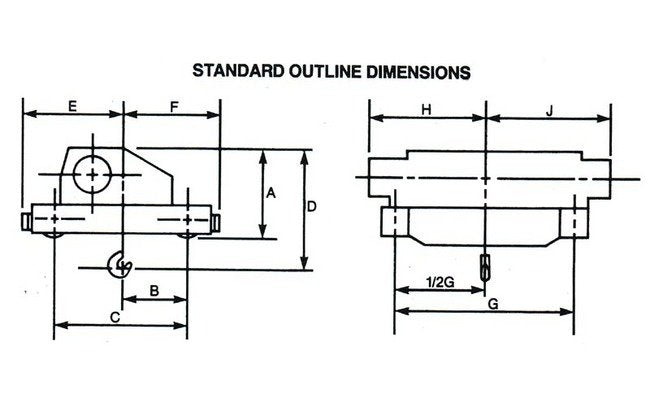

Specifications Dimension A
42 inches
Specifications Dimension B
29 inches
Specifications Dimension C
5'-9"
Specifications Dimension D
76 inches
Specifications Dimension E
51 inches
Specifications Dimension F
44 inches
Specifications Dimension G
8'-0" inches
Specifications Dimension H
6'-4"
Specifications Dimension J
5'-7"
Specifications Hoist Single Speed
30 HP
Specifications Hoist Speed Single Speed
13 FPM
Specifications Hoist Speed Two Speed
4/13 FPM
Specifications Hoist Two Speed
10/30 HP
Specifications Lift
27 ft.
Specifications Reeving
4PD-5/8"
Specifications Trolley Gage
8'-0"
Specifications Trolley Motor
3 HP
Specifications Trolley Speed
55
Specifications Weight
9750 lbs.
Specifications Wheel Diameter
12 inches
Standard Features Standard Features
One Piece Heavy Steel Weldment Trolley Frame Precision 4140 Steel Trolley Wheels Double Reeved for True Vertical Lift Fabricated Steel Drum with Deep Machined Grooves 10,000 Hour L-10 Bearing Life High Carbon Alloy Steel Sheaves 150% Disc Type Hoist Motor Brake Single-Two-Three and Four Speed Models Upper and Lower Geared Limit Switch Weight Operated Upper Safety Limit Switch All Steel Enclosed Lower Block All Sheaves Above Trolley Deck NEMA Rated Contactors NEMA Type 1 Control Enclosure 115 Volt Fused Control Circuit M.O.P. (Motor Overcurrent Protection) M.R.O.P. (Motor Running Overcurrent Protection) TENV, 30 Minute Rated Motors Legended Terminal Strips Mechanical and Regenerative Braking Ballast Resistors for Trolley Drive Spring Type Safety Latch on Hook Rail Sweeps Factory Reeved and Tested
