RWA Flexible Aluminum Conduit - UL Listed, 1-1/2 Inches, 150ft Reel

Name: RWA Flexible Aluminum Conduit - UL Listed, 1-1/2 Inches, 150ft Reel
Brand: Anamet Electrical, Inc.
SKU: FLE-56c356
Price: 189.99 USD
Availability: OutOfStock

SKU:FLE-56c356

UL Listed RWA Flexible Aluminum Conduit, 1-1/2 Inches, High Crush Resistance, 500°F Max Temp.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

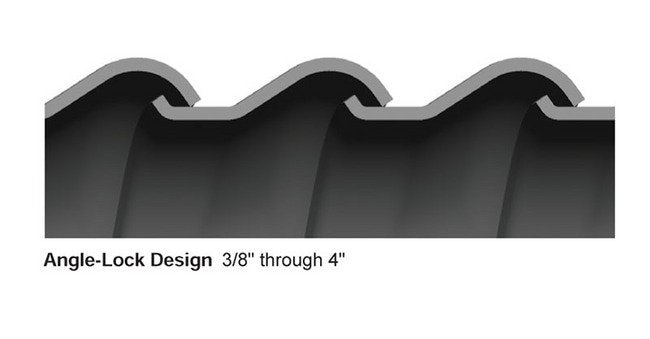

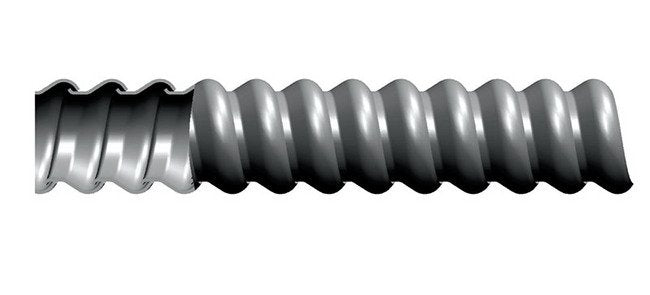

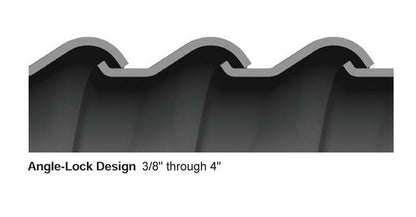

Experience superior electrical wiring with the RWA Flexible Aluminum Conduit. This UL listed conduit features a reduced wall design, making it lightweight and easy to handle. With a high crush resistance and a temperature rating of up to 500°F, it meets stringent industry standards like NEC Article 348 and is suitable for exposed and concealed installations. Designed for durability, this conduit is made of continuously interlocked aluminum strip for reliable performance. Ideal for a wide range of applications, from information technology setups to elevator wiring methods, it ensures compliance with federal procurement standards and GSA requirements.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

7.5 in | 190.5 mm

Specifications Approx Weight Per 100 Ft

26 lbs | 11.79 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-09-27-01 | 5606-22-00 | 69452 | ABR-15 | RWA-1-1/2

Specifications Electrical Trade Size

1-1/2 in | 41 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

1.500 to 1.575 in | 38.100 to 40.005 mm

Specifications Jacket Material

None

Specifications Length

150 ft | 7.62 m

Specifications Outside Diameter

1.850 to 1.950 in | 46.990 to 49.530 mm

Specifications Packaging

Standard reel

Specifications Type

RWA
