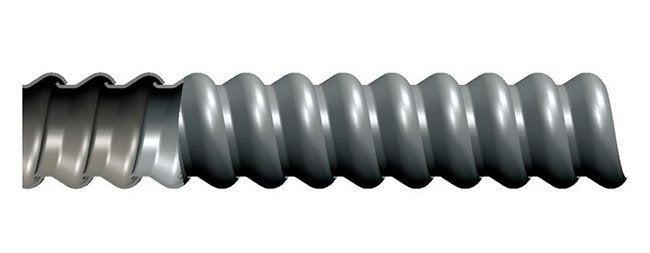

The RWS Flexible Steel Conduit is a top-tier solution for wiring, constructed of hot-dipped zinc galvanized steel for unmatched durability. With an inside diameter ranging from 1.500 to 1.575 inches and an outside diameter from 1.850 to 1.950 inches, it offers flexibility and high crush resistance. This conduit, meeting UL and NEC standards, is ideal for various applications including elevators and IT equipment installations. It complies with NEC Articles 250, 300, 348, 501, 620, and 645, ensuring electrical safety and performance excellence.
Product Specifications
Application 0
Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature
Installation 0
Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.
Nec Articles 0
Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
7.5 in | 190.5 mm
Specifications Approx Weight Per 100 Ft
76 lbs | 34.47 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
5506-22-00 | 55-09-18-01 | 69352 | BR-15 | RWS-1-1/2
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
UL Certification
Specifications Inside Diameter
1.500 to 1.575 in | 38.100 to 40.005 mm
Specifications Jacket Material
None
Specifications Length
25 ft | 7.62 m
Specifications Outside Diameter
1.850 to 1.950 in | 46.990 to 49.530 mm
Specifications Packaging
Standard Coils
Specifications Type
RWS
