RWS Flexible Steel Conduit - UL Listed 1-1/4in x 50ft

Name: RWS Flexible Steel Conduit - UL Listed 1-1/4in x 50ft
Brand: Anamet Electrical, Inc.
SKU: FLE-7fe38e
Price: 129.99 USD
Availability: OutOfStock

SKU:FLE-7fe38e

UL Listed RWS Flexible Steel Conduit for safe and flexible wiring projects. High crush resistance with +450°F max temperature. Sizes 1-1/4in x 50ft.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

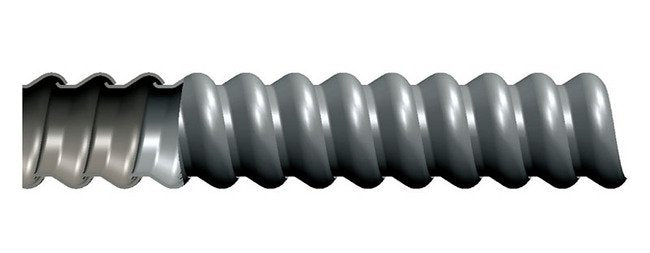

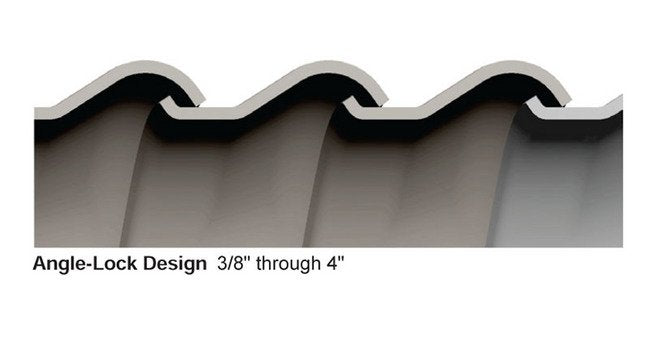

The Type RWS Reduced Wall Steel Flexible Metal Conduit (FMC) offers a versatile solution for wiring projects, providing a flexible raceway made of continuously interlocked hot dipped zinc galvanized steel. This conduit is UL listed for electrical trade sizes 3/8" through 4", ensuring high-quality standards and safety compliance. With an inside diameter ranging from 1.250 to 1.300 inches and an outside diameter between 1.550 and 1.630 inches, this conduit is designed to meet the needs of diverse installations. Its high crush resistance, +450°F maximum temperature compatibility, and adherence to NEC regulations make it a reliable choice for various applications.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

6.25 in | 158.75 mm

Specifications Approx Weight Per 100 Ft

63 lbs | 28.58 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5505-24-00 | 55-09-17-01 | 69342 | BR-14 | RWS-1-1/4

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

1.250 to 1.300 in | 31.750 to 33.020 mm

Specifications Jacket Material

None

Specifications Length

50 ft | 15.24 m

Specifications Outside Diameter

1.550 to 1.630 in | 39.370 to 41.402 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS
