RWS Flexible Steel Conduit - UL Listed (3/8" to 4")

Name: RWS Flexible Steel Conduit - UL Listed (3/8" to 4")
Brand: Anamet Electrical, Inc.
SKU: FLE-31a52c
Price: 59.99 USD
Availability: OutOfStock

SKU:FLE-31a52c

Durable RWS Flexible Steel Conduit, UL Listed, sizes 3/8"-4". High crush resistance, up to +450°F. NEC compliant.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

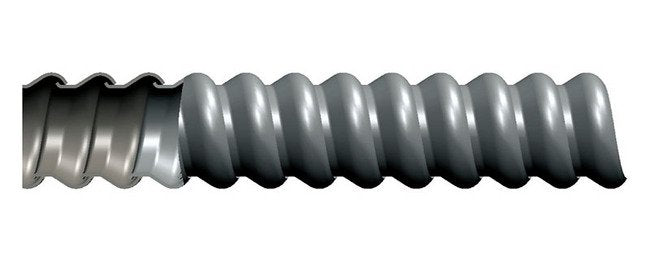

The RWS Flexible Steel Conduit is a durable and flexible raceway solution for wiring needs. Made of continuously interlocked hot dipped zinc galvanized steel, this UL Listed conduit comes in electrical trade sizes ranging from 3/8" to 4". With an approximate weight of 28 lbs per 100 ft, it offers high crush resistance and can withstand temperatures up to +450°F. Compliant with various NEC articles, it can be used in exposed and concealed locations, elevators, escalators, and more.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

28 lbs | 12.70 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5502-22-00 | 69318 | BR-11 | RWS-1/2

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.625 to 0.645 in | 15.875 to 16.383 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

0.860 to 0.920 in | 21.844 to 23.368 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS
