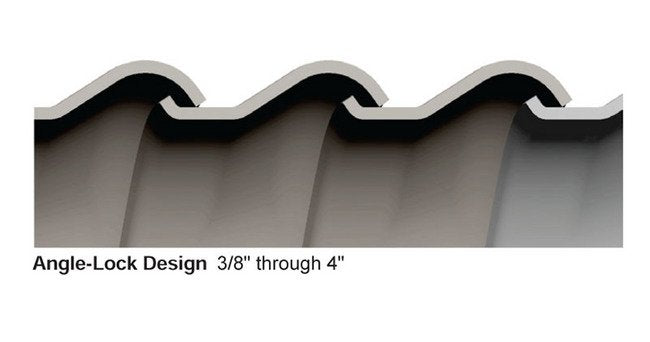

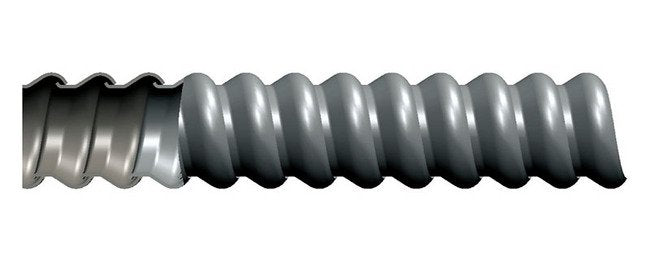

The RWS Flexible Steel Conduit, also known as Flexible Metal Conduit (FMC), provides a reliable and flexible raceway for wiring applications. Constructed with continuously interlocked hot dipped zinc galvanized steel, this conduit is UL listed in electrical trade sizes ranging from 3/8" to 4". With a reduced wall design, it offers high crush resistance and can withstand temperatures up to +450°F. This conduit is compatible with standard fittings and connectors, ensuring easy installation in various settings, including exposed and concealed locations, elevators, and IT equipment installations, meeting stringent NEC and UL certification requirements.
Product Specifications
Application 0
Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature
Installation 0
Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.
Nec Articles 0
Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
3.0 in | 76.2 mm
Specifications Approx Weight Per 100 Ft
28 lbs | 12.70 kg
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
5502-60-00 | 55-08-18-03 | 69312 | BR-11 | RWS-1/2
Specifications Electrical Trade Size
1/2 in | 16 mm
Specifications Industry Certifications
UL Certification
Specifications Inside Diameter
0.625 to 0.645 in | 15.875 to 16.383 mm
Specifications Jacket Material
None
Specifications Length
1000 ft | 304.8 m
Specifications Outside Diameter
0.860 to 0.920 in | 21.844 to 23.368 mm
Specifications Packaging
Standard Reels
Specifications Type
RWS
