S-FAB C 40-40 11kW Semi-Automatic Column Band Saw
S-FAB C 40-40 11kW Semi-Automatic Column Band Saw
SKU:BAN-33a0eb
Powerful 11kW Semi-Automatic Band Saw with 40.2” cutting capacity, hydraulic vice, and inverter for precise industrial cutting.
Regular price
$18,999.99
Regular price
Sale price
$18,999.99
Unit price
per
Initiate Order
S-FAB C 40-40 11kW Semi-Automatic Column Band Saw
$18,999.99
Quantity: 1
Claim Your Seller Account
S-FAB C 40-40 11kW Semi-Automatic Column Band Saw
$18,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

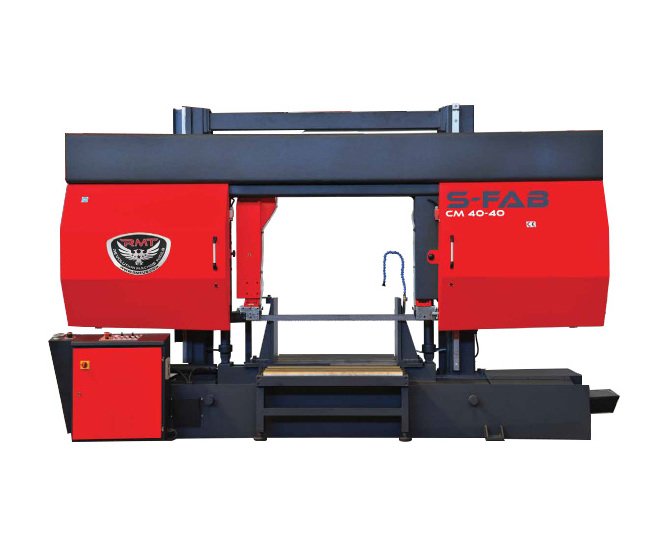

The S-FAB C 40-40 is a powerful 11kW Semi-Automatic Column Type Band Saw designed for precision cutting in industrial settings. With a cutting speed ranging from 20 to 100 m/min, a hydraulic motor power of 3 kW, and a heavy-duty Siti gearbox, this band saw offers reliable performance. Featuring a hydraulic vice, inverter, and linear guide rails, it ensures ease of operation and accuracy. The machine's 40.2-inch capacity at 0-degree angle accommodates various materials, while optional features such as micromist cooling and laser line enhance its functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

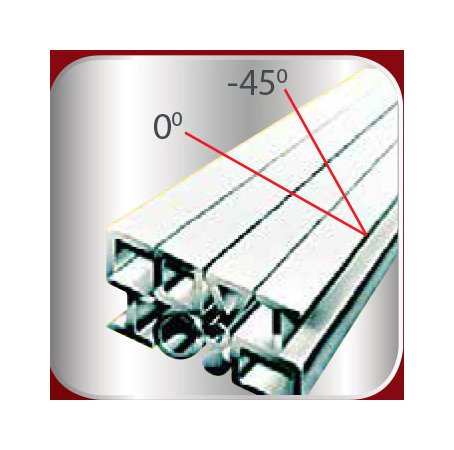

Capacities Capacity At 0 Degree Angle Flat Height X Width
40.2 x 40.2 in | 1021 x 1021 mm
Capacities Capacity At 0 Degree Angle Round
40.2 in | 1021 mm
Capacities Capacity At 0 Degree Angle Square
40.2 in | 1021 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
40.2 x 26.6 in | 1021 x 676 mm
Capacities Capacity At 45 Degree Angle Round
26.6 in | 676 mm
Capacities Capacity At 45 Degree Angle Square
26.6 in | 676 mm
Machine Dimensions Machine Height
109 in | 2769 mm
Machine Dimensions Machine Length
178 in | 4521 mm
Machine Dimensions Machine Width
67 in | 1702 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
374 x 2.12 in | 9500 x 54 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
3 kW | 4 hp
Specifications Main Motor Power
11 kW | 15 hp
Specifications Weight
5860 kg | 12919 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchHeight adjustment switchSiti heavy duty gearboxInverterSensitive pressure controlLinear guide railsHydro mechanical blade tensionOptical saw height adjustmentCoolant pump
