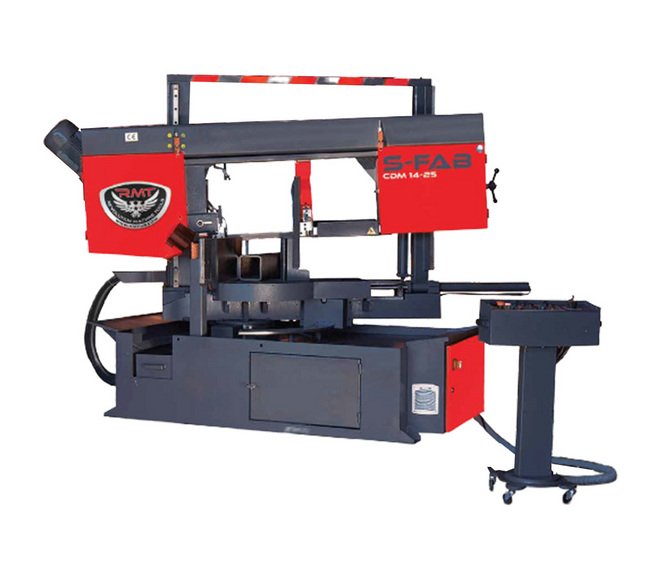

The S-FAB CDM 14-25, 4kW Main Motor Semi-Automatic Column Type Double Miter Band Saw from RMT is a robust cutting solution suitable for both industrial and institutional settings. With a cutting speed range of 20 to 100 m/min, powered by a 4 kW main motor, and equipped with hydraulic motors, this band saw delivers precise and efficient cutting operations. Its semi-automatic features enhance productivity while ensuring accuracy. The machine comes with standard features like a control panel, blade brush, hydraulic vice, and security switch for enhanced operational safety. Optional features such as hydraulic blade tensioning and cooling systems are available to further customize the machine based on specific cutting needs.
Product Specifications

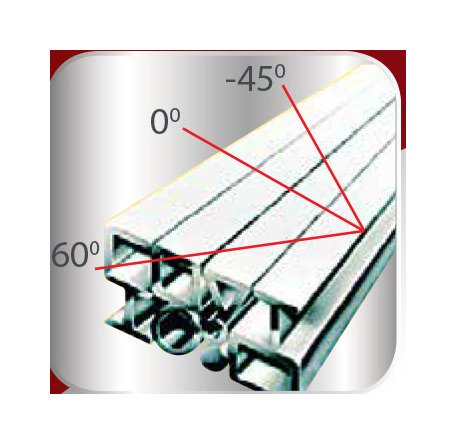

Capacities Capacity At 0 Degree Angle Flat Height X Width
14.2 x 25.1 in | 361 x 637 mm
Capacities Capacity At 0 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 0 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
14.2 x 20 in | 361 x 508 mm
Capacities Capacity At 30 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 30 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
14.2 x 15.3 in | 361 x 389 mm
Capacities Capacity At 45 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 45 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
14.2 x 9.8 in | 361 x 249 mm
Capacities Capacity At 60 Degree Angle Round
12.2 in | 310 mm
Capacities Capacity At 60 Degree Angle Square
10.6 in | 269 mm
Machine Dimensions Machine Height
76 in | 1930 mm
Machine Dimensions Machine Length
119 in | 3023 mm
Machine Dimensions Machine Width
48 in | 1219 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
16 ft 5 in. x 1.25 in. | 5000 x 32 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
4 kW | 5.5 hp
Specifications Weight
1635 kg | 3605 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionOptical saw height adjustmentLinear guide railsCoolant pump
