S-FAB CDM 21-32 Double Miter Band Saw - 5.5 kW Main Motor
S-FAB CDM 21-32 Double Miter Band Saw - 5.5 kW Main Motor
SKU:BAN-0a3654
Powerful 5.5 kW Semi-Automatic Band Saw for precision cutting tasks. Versatile, efficient, and safe for industrial use.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
S-FAB CDM 21-32 Double Miter Band Saw - 5.5 kW Main Motor
$18,999.00
Quantity: 1
Claim Your Seller Account
S-FAB CDM 21-32 Double Miter Band Saw - 5.5 kW Main Motor
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

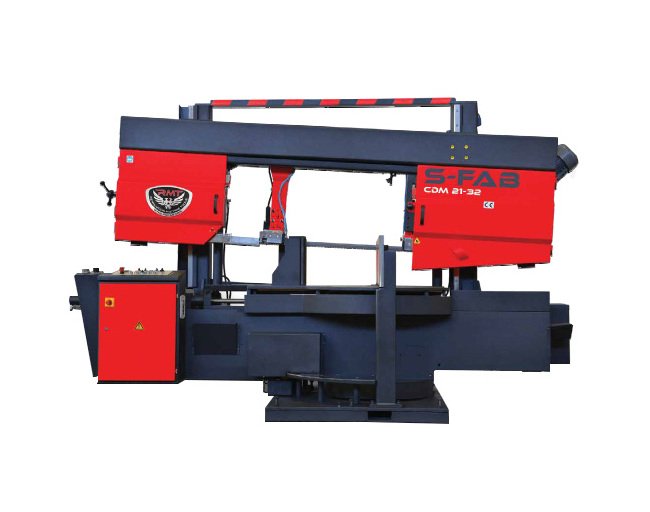

The S-FAB CDM 21-32 Semi-Automatic Band Saw is a powerhouse designed for precision cutting tasks. With a robust 5.5 kW main motor, cutting speed ranging from 20 to 100 m/min, and a hydraulic motor for seamless operation, this saw offers exceptional performance. Its semi-automatic features, combined with a wide range of cutting capacities at various angles, make it versatile for diverse cutting needs. The included standard features like the control panel, hydraulic vice, and blade brush ensure efficiency and safety in operation. This band saw is built to meet stringent industry standards, delivering reliable performance for industrial and institutional applications.
Product Specifications

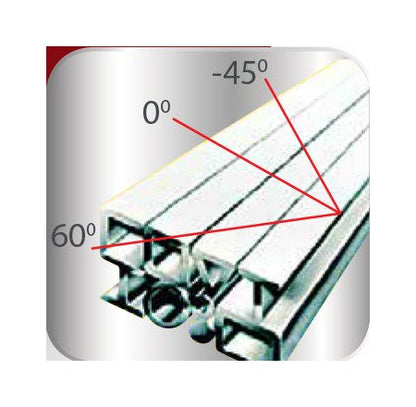

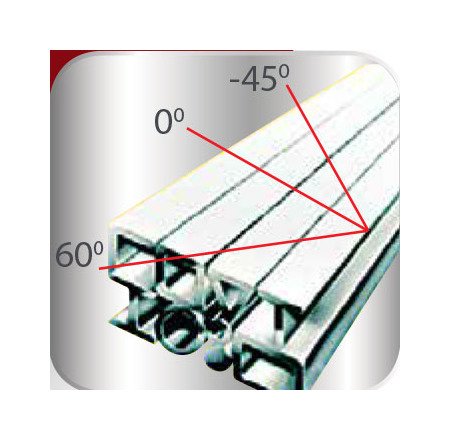

Capacities Capacity At 0 Degree Angle Flat Height X Width
21.3 x 32.3 in | 541 x 820 mm
Capacities Capacity At 0 Degree Angle Round
22.0 in | 559 mm
Capacities Capacity At 0 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
21.3 x 27.8 in | 541 x 706 mm
Capacities Capacity At 30 Degree Angle Round
22.0 in | 559 mm
Capacities Capacity At 30 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
21.3 x 21.7 in | 541 x 551 mm
Capacities Capacity At 45 Degree Angle Round
21.7 in | 551 mm
Capacities Capacity At 45 Degree Angle Square
21.3 in | 541 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
21.3 x 14.2 in | 541 x 361 mm
Capacities Capacity At 60 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 60 Degree Angle Square
14.2 in | 361 mm
Machine Dimensions Machine Height
93 in | 2362 mm
Machine Dimensions Machine Length
150 in | 3810 mm
Machine Dimensions Machine Width
69 in | 1753 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser lineChip conveyor
Specifications Band Dimension
267.7 x 1.61 in | 6800 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
5.5 kW | 7.5 hp
Specifications Weight
3200 kg | 7055 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionOptical saw height adjustmentLinear guide railsTurn tableTurn table brakeProximity switch for sensing blade slippageCoolant pump
