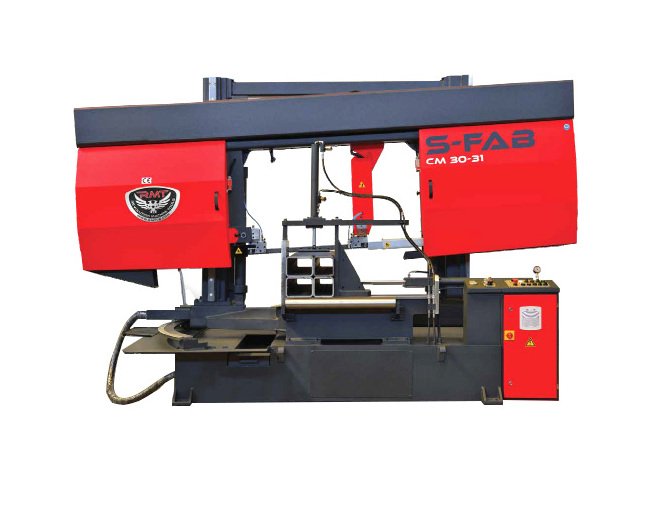

S-FAB CM 30-31 Band Saw, 7.5 kW Main Motor, Semi-Automatic Column Type
S-FAB CM 30-31 Band Saw, 7.5 kW Main Motor, Semi-Automatic Column Type
SKU:BAN-effa2c
Discover precision cutting with the S-FAB CM 30-31 Band Saw - powerful, versatile, and reliable for industrial applications.
Regular price
$11,500.00
Regular price
Sale price
$11,500.00
Unit price
per
Initiate Order
S-FAB CM 30-31 Band Saw, 7.5 kW Main Motor, Semi-Automatic Column Type
$11,500.00
Quantity: 1
Claim Your Seller Account
S-FAB CM 30-31 Band Saw, 7.5 kW Main Motor, Semi-Automatic Column Type
$11,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S-FAB CM 30-31 Band Saw is a high-performance machine designed for precision cutting in industrial settings. Powered by a 7.5 kW main motor, this semi-automatic column type band saw offers versatile cutting capabilities with a cutting speed range of 20 to 100 m/min. Its robust construction and advanced features such as hydraulic vice, inverter, and digital angle display ensure efficient operation. Ideal for both consumer and institutional buyers, this S-FAB band saw delivers reliability, accuracy, and compliance with industry standards.
Product Specifications

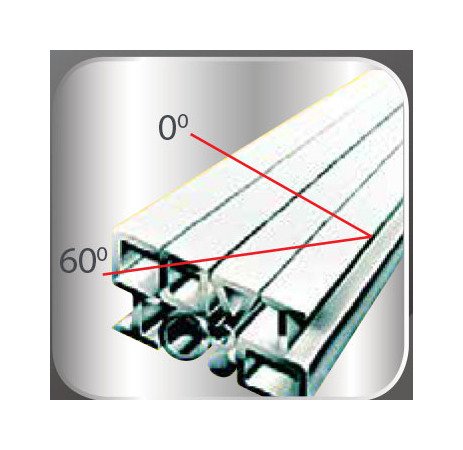

Capacities Capacity At 0 Degree Angle Flat Height X Width
30.3 x 31.9 in | 770 x 810 mm
Capacities Capacity At 0 Degree Angle Round
31.9 in | 810 mm
Capacities Capacity At 0 Degree Angle Square
30.3 in | 770 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
30.3 x 27.6 in | 770 x 701 mm
Capacities Capacity At 30 Degree Angle Round
27.6 in | 701 mm
Capacities Capacity At 30 Degree Angle Square
27.6 in | 701 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
30.3 x 21.9 in | 770 x 556 mm
Capacities Capacity At 45 Degree Angle Round
21.9 in | 556 mm
Capacities Capacity At 45 Degree Angle Square
21.9 in | 556 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
30.3 x 12.2 in | 770 x 310 mm
Capacities Capacity At 60 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 60 Degree Angle Square
12.2 in | 310 mm
Machine Dimensions Machine Height
102 in | 2591 mm
Machine Dimensions Machine Length
159 in | 4039 mm
Machine Dimensions Machine Width
65 in | 1651 mm
Optional Features
Hydraulic blade tensionHydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
322.8 x 1.61 in | 8200 x 41 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
1.5 kW | 2 hp
Specifications Main Motor Power
7.5 kW | 10 hp
Specifications Roller Table Height
4 ft
Specifications Weight
4050 kg | 8929 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchSiti heavy duty gearboxInverterSensitive pressure controlDigital angle displayLinear guide railsTurn tableTurn table brakeHydro mechanical blade tensionOptical saw height adjustmentCoolant pump
