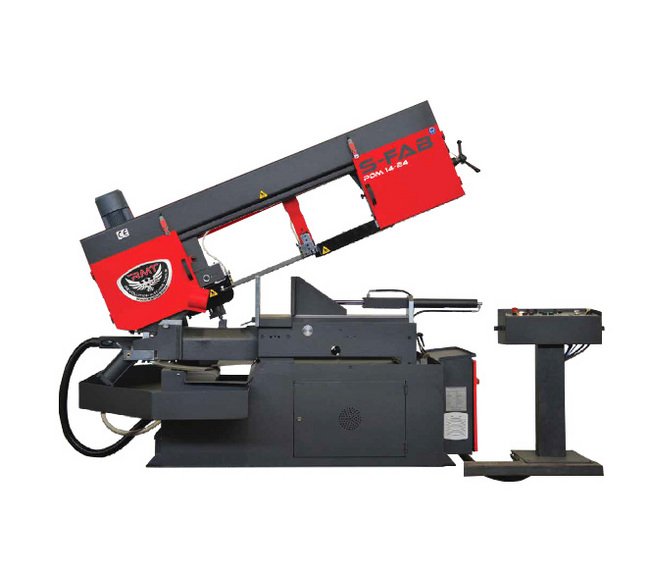

The S-FAB PDM 14-24 Semi-Automatic Pivot Type Double Miter Band Saw is a robust cutting solution designed for precision and efficiency. With a powerful 4kW main motor, cutting speed ranging from 20 to 100 m/min, and a variety of angle capacities, this band saw is perfect for industrial applications. Its semi-automatic operation, hydraulic features, and durable construction make it a reliable choice for high-volume cutting tasks. Additionally, the S-FAB PDM 14-24 meets stringent federal procurement standards, ensuring quality and compliance for government and institutional buyers.
Product Specifications

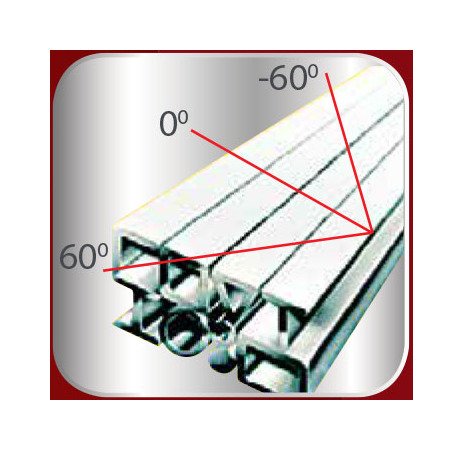

Capacities Capacity At 0 Degree Angle Flat Height X Width
14.2 x 24 in | 361 x 610 mm
Capacities Capacity At 0 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 0 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
14.2 x 24 in | 361 x 610 mm
Capacities Capacity At 30 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 30 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
14.2 x 19.3 in | 361 x 490 mm
Capacities Capacity At 45 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 45 Degree Angle Square
14.2 in | 361 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
14.2 x 14.2 in | 361 x 361 mm
Capacities Capacity At 60 Degree Angle Round
14.2 in | 361 mm
Capacities Capacity At 60 Degree Angle Square
14.2 in | 361 mm
Machine Dimensions Machine Height
74 in | 1880 mm
Machine Dimensions Machine Length
109 in | 2769 mm
Machine Dimensions Machine Width
48 in | 1219 mm
Optional Features
Hydraulic blade tensionDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
16 ft 5 in. x 1.25 in. | 5000 x 32 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
0.55 kW | 3/4 hp
Specifications Main Motor Power
4 kW | 5.5 hp
Specifications Weight
1460 kg | 3219 lb
Standard Features
Control PanelBlade BrushHydraulic ViceMaterial Length StopSecurity SwitchHeight adjustment switchSiti Heavy Duty GearboxInverterSensitive Pressure ControlHydro mechanical Blade TensionOptical Saw Height AdjustmentAnti Vibration CylinderCoolant Pump
