S-FAB PDM 17-24, 4kW Semi-Automatic Double Miter Band Saw
S-FAB PDM 17-24, 4kW Semi-Automatic Double Miter Band Saw
SKU:BAN-7ab4e0
Powerful 4kW Semi-Automatic Band Saw with versatile cutting angles for precision and efficiency in industrial applications.
Regular price
$10,999.00
Regular price
Sale price
$10,999.00
Unit price
per
Initiate Order
S-FAB PDM 17-24, 4kW Semi-Automatic Double Miter Band Saw
$10,999.00
Quantity: 1
Claim Your Seller Account
S-FAB PDM 17-24, 4kW Semi-Automatic Double Miter Band Saw
$10,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

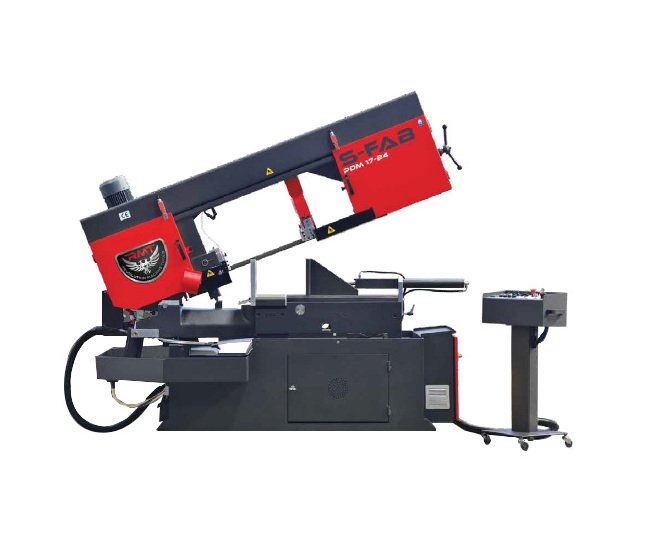

The S-FAB PDM 17-24 is a high-performance Semi-Automatic Pivot Type Double Miter Band Saw designed to meet the demands of industrial cutting applications with precision and efficiency. Featuring a powerful 4kW main motor, this band saw offers versatile cutting capabilities with adjustable angles for increased productivity. Equipped with essential features such as a control panel, hydraulic vice, and inverter, this machine ensures operational safety and ease of use. Compliant with federal procurement standards and industry certifications, the S-FAB PDM 17-24 is a dependable solution for government and institutional buyers seeking reliable cutting equipment.
Product Specifications

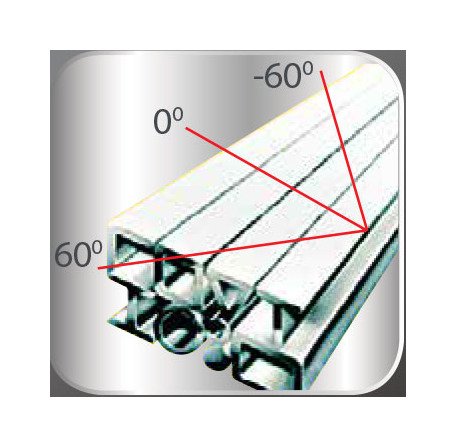

Capacities Capacity At 0 Degree Angle Flat Height X Width
17.3 x 24 in | 439 x 610 mm
Capacities Capacity At 0 Degree Angle Round
17.3 in | 439 mm
Capacities Capacity At 0 Degree Angle Square
17.3 in | 440 mm
Capacities Capacity At 30 Degree Angle Flat Height X Width
17.3 x 19.7 in | 439 x 500 mm
Capacities Capacity At 30 Degree Angle Round
17.3 in | 439 mm
Capacities Capacity At 30 Degree Angle Square
17.3 in | 439 mm
Capacities Capacity At 45 Degree Angle Flat Height X Width
17.3 x 16.1 in | 439 x 409 mm
Capacities Capacity At 45 Degree Angle Round
16.1 in | 4.9 mm
Capacities Capacity At 45 Degree Angle Square
16.1 in | 409 mm
Capacities Capacity At 60 Degree Angle Flat Height X Width
17.3 x 11.2 in | 439 x 284 mm
Capacities Capacity At 60 Degree Angle Round
12.6 in | 320 mm
Capacities Capacity At 60 Degree Angle Square
11.2 in | 284 mm
Machine Dimensions Machine Height
74 in | 1880 mm
Machine Dimensions Machine Length
111 in | 2819 mm
Machine Dimensions Machine Width
48 in | 1219 mm
Optional Features

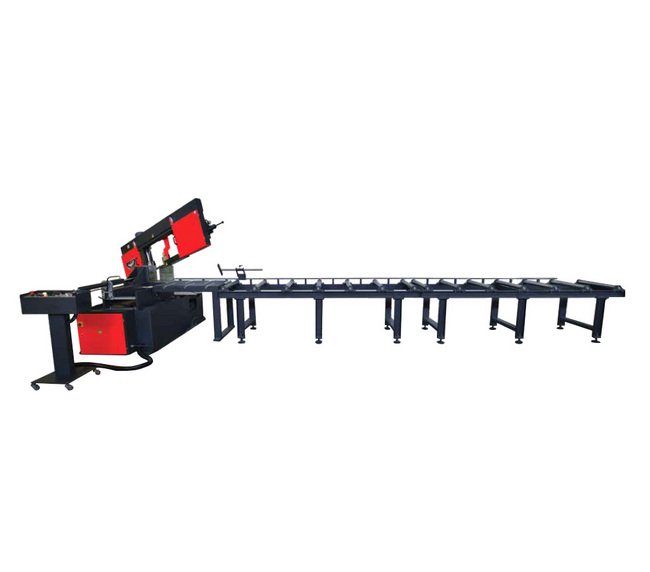

NC control panelHydraulic blade tensionDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableLaser line
Specifications Band Dimension
204.7 x 1.25 in | 5200 x 32 mm
Specifications Cutting Speed
20 to 100 m/min | 65 to 328 ft/min
Specifications Features
Semi-Automatic
Specifications Hydraulic Motor Power
0.55 kW | 3/4 hp
Specifications Main Motor Power
4 kW | 5.5 hp
Specifications Weight
1540 kg | 3395 lb
Standard Features
Control panelBlade brushHydraulic viceSecurity switchHeight adjustment switchSiti heavy duty gearboxInverterSensitive pressure controlHydro mechanical blade tensionAnti vibration cylinderCoolant pump
