S-GENIUS CNC Servo Column Band Saw
S-GENIUS CNC Servo Column Band Saw
SKU:BAN-04df6b
Experience precision and efficiency with the S-GENIUS CNC Servo Band Saw by RMT. Cutting-edge technology for industrial perfection.
Regular price
$27,999.00
Regular price
Sale price
$27,999.00
Unit price
per
Initiate Order
S-GENIUS CNC Servo Column Band Saw
$27,999.00
Quantity: 1
Claim Your Seller Account
S-GENIUS CNC Servo Column Band Saw
$27,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

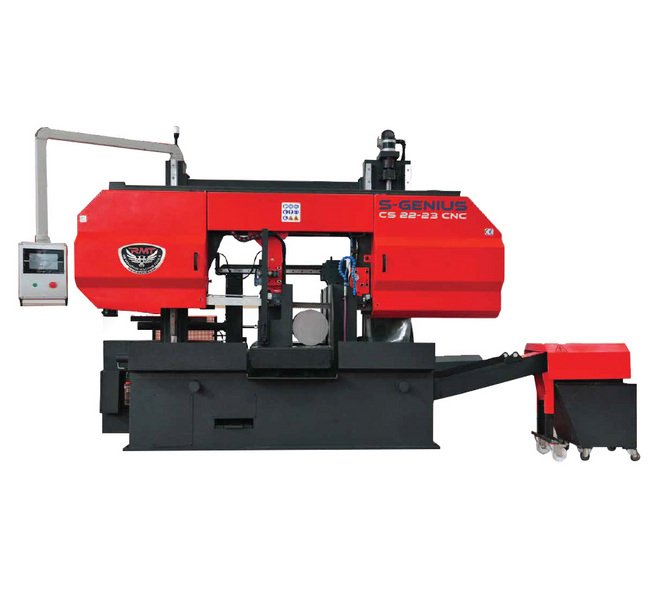

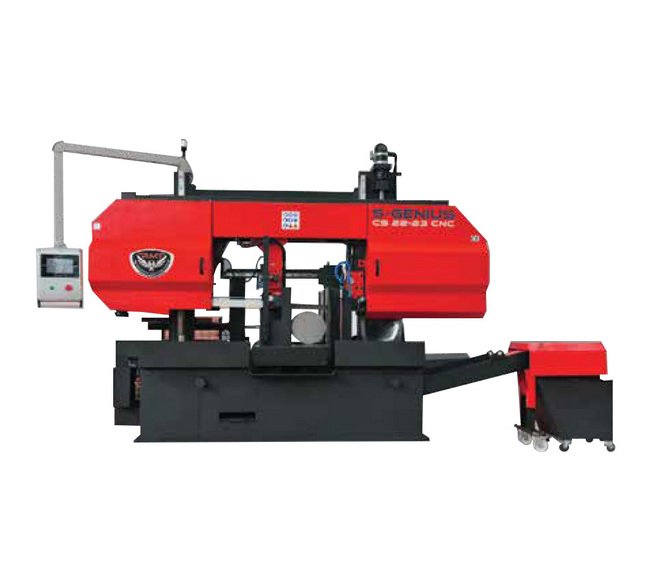

The S-GENIUS Series Computer Numerical Control (CNC) Fully Automatic Servo Column Type Straight Cutting Band Saw by RMT is a powerhouse designed for precision cutting in industrial settings. With cutting speed ranging from 20 to 153 m/min, this band saw offers exceptional efficiency. Equipped with a 15 kW main motor power and advanced servo motors, it provides accurate and smooth cutting operations. The CNC smart cutting system ensures optimal performance. Featuring hydraulic blade tension, security switches, and automatic functions, this saw guarantees safety and ease of use, making it an ideal choice for demanding metalworking applications.
Product Specifications
Capacities Capacity At 0 Degree Angle Flat Height X Width
22.4 x 23.6 in | 569 x 599 mm
Capacities Capacity At 0 Degree Angle Round
22.4 in | 569 mm
Capacities Capacity At 0 Degree Angle Square
22.4 in | 569 mm
Machine Dimensions Machine Height
107 in | 2718 mm
Machine Dimensions Machine Length
138 in | 3505 mm
Machine Dimensions Machine Width
79 in | 2007 mm
Optional Features
Hydraulic top clampingDropsa air/oil clean lubrication systemMicromist cooling10 ft roller table10 ft motorized roller tableServo motor feeding vice 120" stroke
Specifications Band Dimension
291.3 x 2.12 in | 7400 x 54 mm
Specifications Chip Conveyor Motor Power
0.25 kW | 0.33 hp
Specifications Coolant Motor Power
0.12 kW | 0.16 hp
Specifications Cutting Speed
20 to 153 m/min | 65 to 500 ft/min
Specifications Down Feed Servo Motor Power
1.5 kW | 2 hp
Specifications Features
Automatic | Computer Numerical Control (CNC)
Specifications Hydraulic Motor Power
1.1 kW | 1.5 hp
Specifications Main Motor Power
15 kW | 20 hp
Specifications Material Feeding Servo Motor Power
2 kW | 2.68 hp
Specifications Weight
5250 kg | 11,574 lb
Standard Features
NC control panelMotorized blade brushHydraulic viceServo motor feeding vice 27" strokeLinear guide railsServo motor driven ball screw down-feed system (CNC smart cutting)Split viceSecurity switchHeavy duty planetary gearboxInverterHydraulic blade tensionBlade deflection sensorCoolant pumpOptical saw height adjustmentProximity switch for sensing blade slippageChip conveyor
