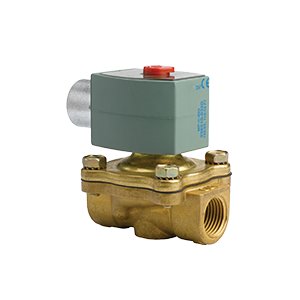

S Series Brass Solenoid Valve - Water & Steam Control System
S Series Brass Solenoid Valve - Water & Steam Control System
SKU:HEA-46fb9d
High-quality S Series Brass Solenoid Valves for water, steam, air & gases control in heating & cooling applications.
Regular price
$217.00
Regular price
Sale price
$217.00
Unit price
per
Initiate Order
S Series Brass Solenoid Valve - Water & Steam Control System
$217.00
Quantity: 1
Claim Your Seller Account
S Series Brass Solenoid Valve - Water & Steam Control System
$217.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S Series Brass Solenoid Valves are designed for precise on/off control of water, steam, air, and gases in various heating, cooling, or fluid replenishing applications. Featuring a brass valve body with Buna-N seals for water service and Ethylene Propylene for steam service, these valves ensure durability and versatility. With certifications including cULus, these valves are suitable for a wide range of applications. The moisture-resistant, epoxy encapsulated terminal enclosure is rated for NEMA 1, 2, 3, 3S, 4, and 4X applications, providing reliability in diverse environments. Available in sizes ranging from 1/2" to 2" FNPT, with voltages customizable for different AC and DC configurations, these valves offer efficient performance with a minimum pressure differential of 5 PSI and maximum pressures up to 125 PSI for water service and 50 PSI for steam service.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Cv Factor
4
Specifications Manufacturer
Process Technology
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Max Psi
125
Specifications Min Psi Oper Pres
5
Specifications Price
217.00 USD
Specifications Series
S Series
Specifications Size Npt
1/2 "
Specifications Type Of Service
Water
Specifications Weight
3.0 lbs | 1.5 kg
