S Series Brass Solenoid Valves - Water & Steam Control
S Series Brass Solenoid Valves - Water & Steam Control
SKU:HEA-1e7971
Precision brass solenoid valves for water, steam, and air control in heating applications. NEMA-rated and durable design with various size options.
Regular price
$1,443.00
Regular price
Sale price
$1,443.00
Unit price
per
Initiate Order
S Series Brass Solenoid Valves - Water & Steam Control
$1,443.00
Quantity: 1
Claim Your Seller Account
S Series Brass Solenoid Valves - Water & Steam Control
$1,443.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

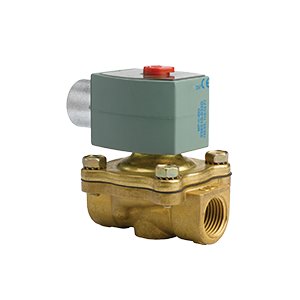

The S Series Brass Solenoid Valves offer precise on/off control for water, steam, air, or gases in heating, cooling, or fluid replenishing applications. Built with a brass valve body and Buna-N seals for water service or Ethylene Propylene for steam service, these valves ensure durability and reliability. The moisture-resistant, epoxy encapsulated terminal enclosure is NEMA rated for various applications. Available in sizes ranging from ½-inch to 2-inch FNPT, with certifications including cULus. With an ambient temperature range of 32°F to 125°F and a maximum pressure of 125 PSI for water service or 50 PSI for steam service, these valves are designed for efficiency and performance. Always use with a strainer for optimal operation.
Product Specifications
Specifications Cv Factor
43
Specifications Manufacturer
Process Technology
Specifications Max Operating Temperature
180 ºF | 82 ºC
Specifications Max Psi
125
Specifications Min Psi Oper Pres
5
Specifications Price
1443.00 USD
Specifications Series
S Series
Specifications Size Npt
2 "
Specifications Type Of Service
Water
Specifications Weight
12.0 lbs | 6.0 kg
