S05 Metallic Ball Valve Pump with Top Discharge
S05 Metallic Ball Valve Pump with Top Discharge
SKU:PRO-b10c33
High-performing S05 Metallic Ball Valve Diaphragm Pump with top discharge, ideal for abrasive fluids & solids.
Regular price
$1,299.00
Regular price
Sale price
$1,299.00
Unit price
per
Initiate Order
S05 Metallic Ball Valve Pump with Top Discharge
$1,299.00
Quantity: 1
Claim Your Seller Account
S05 Metallic Ball Valve Pump with Top Discharge
$1,299.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

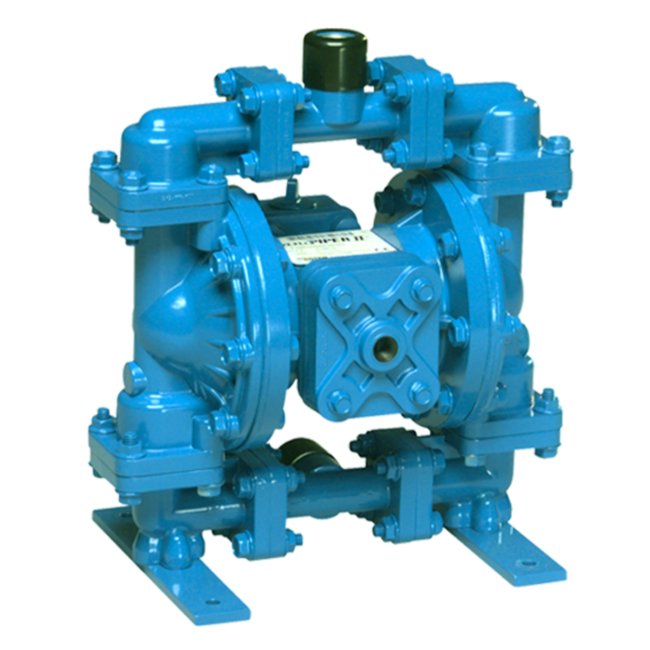

The S05 Metallic Ball Valve Diaphragm Pump with top discharge design is the perfect solution for intermittent/on-demand applications handling moderately abrasive fluids and suspended solids. This pump features a durable aluminum construction with TPE and PTFE diaphragm and check valve options for optimal performance. With a max flow rate of 15 gpm and solid handling capability of up to 0.125 inches, it ensures reliable operation in various industrial settings. Additional accessories like the Sandpiper® Air End and Wet End Kits are available for enhanced functionality.
Product Specifications
Curves 0

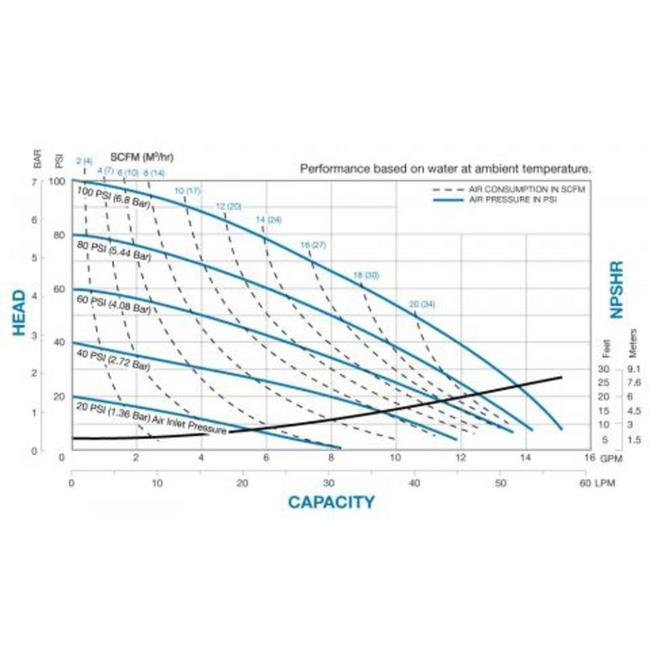

Performance Curves
Specifications Check Valve Seat
UHMW Polyethylene
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
11 in | 274.64 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Length
10 in | 260.35 mm
Specifications Max Flow Rate
15 gpm | 900.00 gph | 56.78 lpm | 3406.87 lph
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Sku
WRS05B1AHWANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
15 lbs | 6.80 kg
Specifications Wetted Moc
Aluminum
Specifications Width
7 in | 185.74 mm
Category 6
Standard Duty Diaphragm Pumps
