S05 Non-Metallic Ball Valve Diaphragm Pump
S05 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-109505
Reliable S05 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluid handling. Durable construction for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
S05 Non-Metallic Ball Valve Diaphragm Pump
$899.99
Quantity: 1
Claim Your Seller Account
S05 Non-Metallic Ball Valve Diaphragm Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

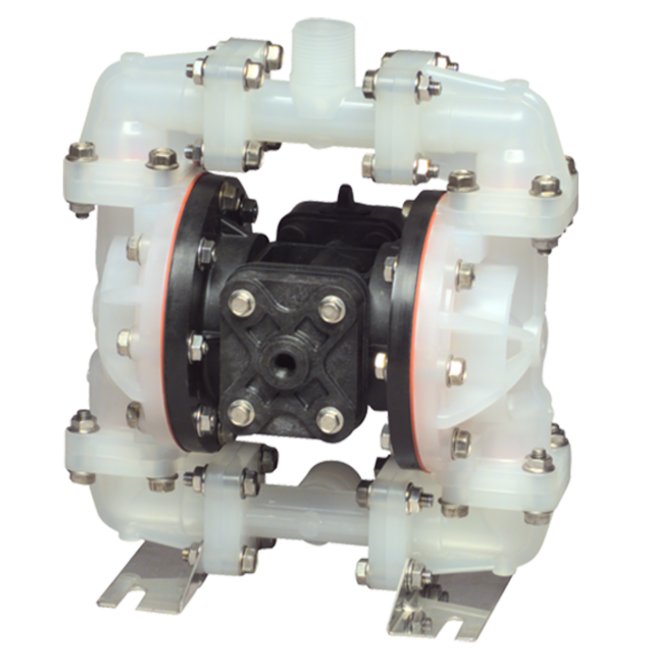

The S05 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent/on-demand needs. Constructed with TPE and PTFE options, it offers durability and reliability for portable and low abrasive fluid applications. With features like a PVDF wetted M.O.C., non-wetted materials in 40% glass-filled polypropylene, and a max flow rate of 14 gpm, this pump ensures efficient performance in various industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

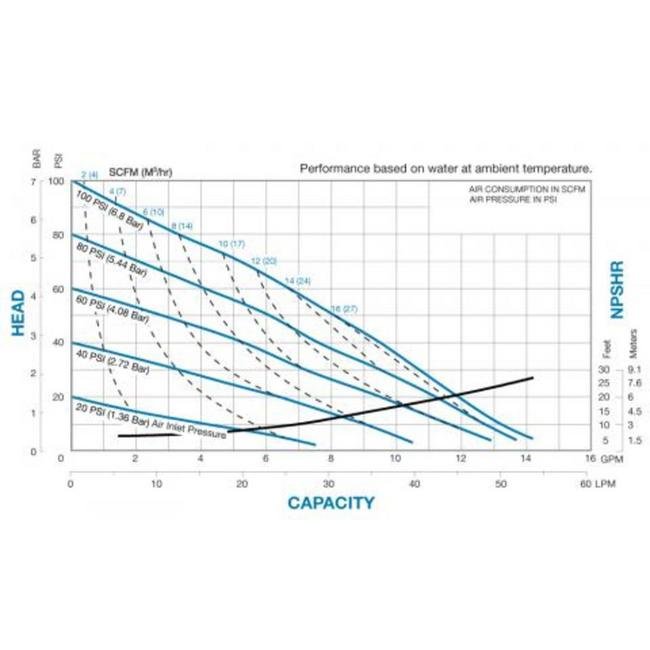

Performance Curves
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
12 in | 293.12 mm
Specifications Inlet Size
0.5 BSP Tapered Threads in | 13 BSP Tapered Threads mm
Specifications Length
10 in | 256.79 mm
Specifications Max Flow Rate
14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Outlet Size
0.5 BSP Tapered Threads in | 13 BSP Tapered Threads mm
Specifications Sku
WRS05B2K1TPBS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
16 lbs | 7.26 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 181.10 mm
Category 6
Standard Duty Diaphragm Pumps
