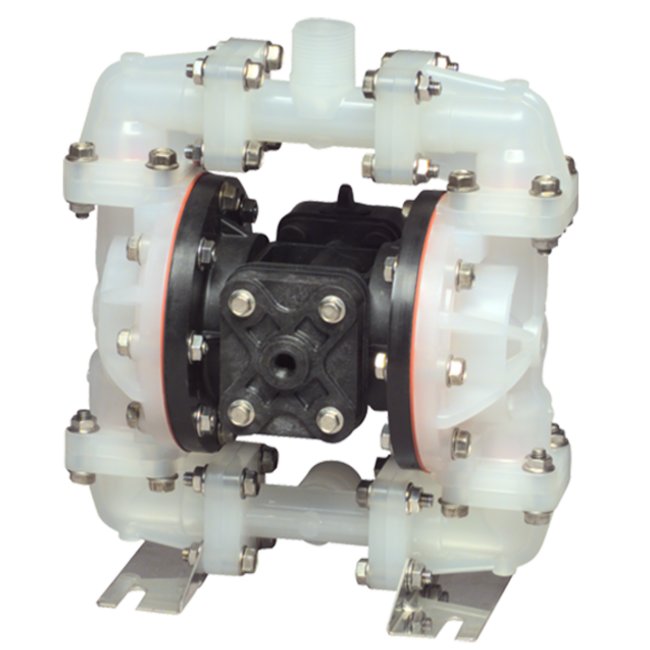

S05 Non-Metallic Ball Valve Diaphragm Pump

Name: S05 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-5c61bc
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-5c61bc

Reliable and durable S05 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids. Air-powered for efficiency.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Non-Metallic Ball Valve Diaphragm Pump is specifically designed for handling highly corrosive fluids and low-abrasive suspensions. Constructed with TPE and PTFE materials, it ensures durability and reliability. With features like an air-powered double diaphragm design and non-metallic wetted components, this pump offers exceptional performance for standard duty applications.

Product Specifications

Curves 0

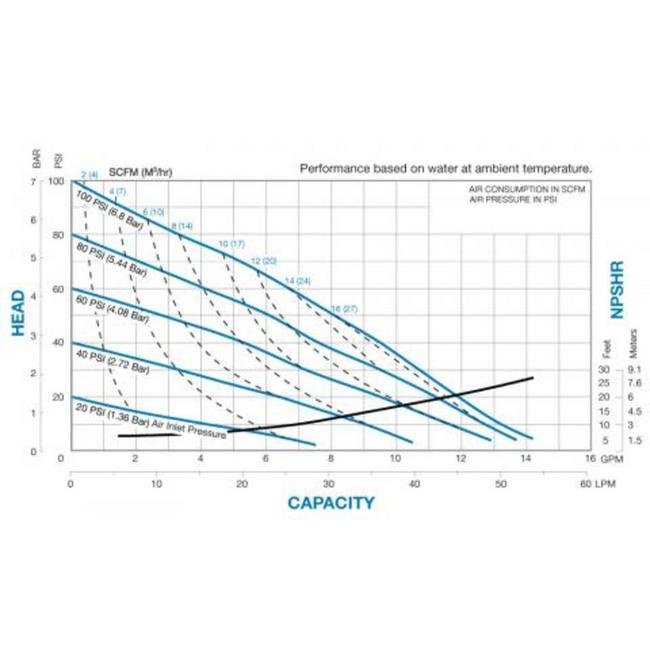

Performance Curves

Specifications Check Valve Seat

Virgin PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Virgin PTFE - Santoprene Backup/Virgin PTFE

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Intake Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

0 - 14 gpm | 0 - 52 lpm

Specifications Non Wetted Material

Unpainted Aluminum

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B2G2TXNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

17 lbs | 8 kg

Specifications Wetted Moc

Conductive Acetal

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Non-Metallic Ball Valve Diaphragm Pump
