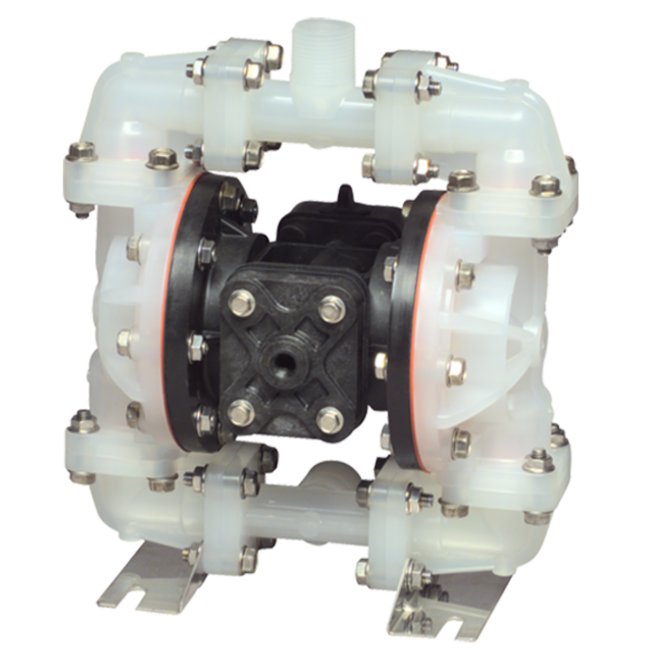

S05 Non-Metallic Ball Valve Diaphragm Pump - Corrosive Fluids | Sandpiper Standard Duty

Name: S05 Non-Metallic Ball Valve Diaphragm Pump - Corrosive Fluids | Sandpiper Standard Duty
Brand: Springer Pumps, LLC
SKU: PRO-3b42c0
Price: 789.99 USD
Availability: OutOfStock

SKU:PRO-3b42c0

Reliable S05 Non-Metallic Ball Valve Pump for corrosive fluids. Ideal for industrial use. Maximum flow rate of 14 GPM.

$789.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Top Discharge Non-Metallic Ball Valve Pump is engineered for handling highly corrosive fluids, suspended solids, and low abrasive substances with efficiency. Constructed with TPE and PTFE diaphragm and check valve options, this Air Powered Double Diaphragm Pump offers reliable performance ideal for intermittent/on-demand applications. With a solid build featuring Conductive Acetal wetted material and Virgin PTFE check valve seat, this pump ensures durability and smooth operation. Delivering a maximum flow rate of 14 GPM, this Standard Duty pump is a dependable choice for various industrial settings.

Product Specifications

Curves 0

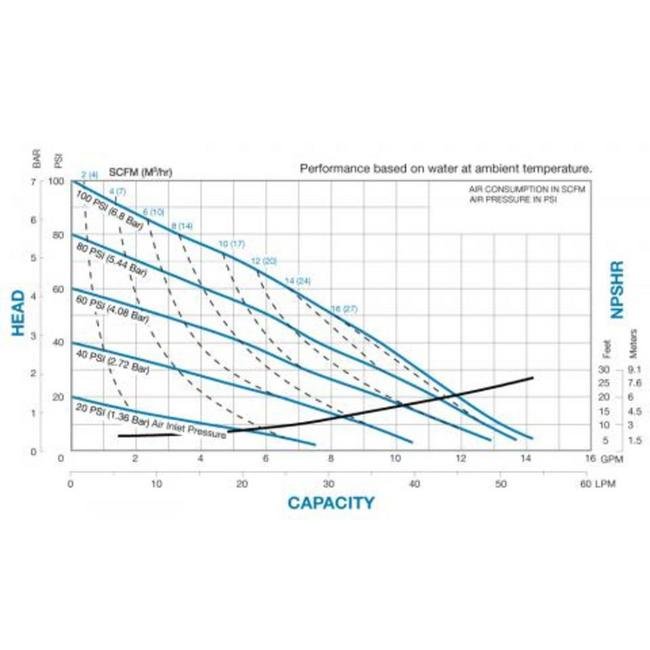

Performance Curves

Specifications Check Valve Seat

Virgin PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Polyurethane/Polyurethane

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Intake Pipe Size Internal

1/2" BSPT Tapered | 1/2" NPT

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

0 - 14 gpm | 0 - 52 lpm

Specifications Non Wetted Material

Unpainted Aluminum

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B2GUTXNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

17 lbs | 8 kg

Specifications Wetted Moc

Conductive Acetal

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Non-Metallic Ball Valve Diaphragm Pump - Corrosive Fluids | Sandpiper Standard Duty
