S05 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge

Name: S05 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
Brand: Springer Pumps, LLC
SKU: PRO-14ff4f
Price: 899.99 USD
Availability: OutOfStock

SKU:PRO-14ff4f

Efficient S05 Non-Metallic Diaphragm Pump for waste water and utility applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

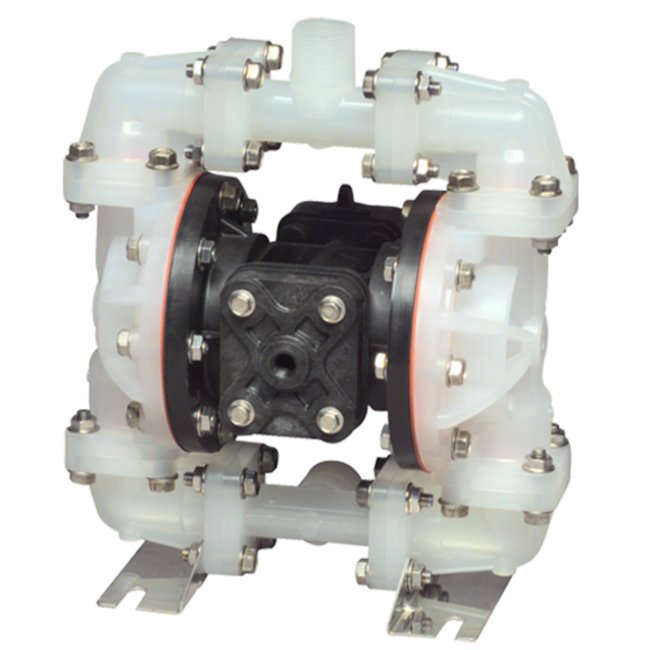

The S05 Non-Metallic Ball Valve Diaphragm Pump is designed for intermittent, portable operations handling moderately abrasive fluids and suspended solids. Constructed with PVDF-Kynar wetted material and stainless steel check valve seat, this pump ensures durability and reliability. With a .5 NPT inlet and outlet size, 0.026 gal displacement per stroke, and top discharge porting position, it offers efficient performance and easy maintenance. Ideal for waste water applications, this pump is versatile and compatible with various accessories.

Product Specifications

Curves 0

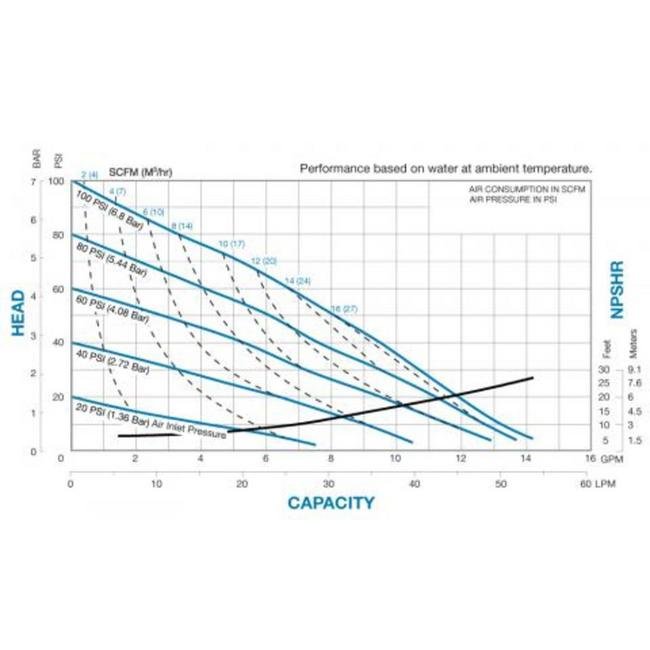

Performance Curves

Specifications Check Valve Seat

Stainless Steel

Specifications Customs Code

HS Code 84131900

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

.5 NPT in | 13 NPT mm

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

0.026 gpm | 1.56 gph | 0.10 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

.5 NPT in | 13 NPT mm

Specifications Porting Position

Top Discharge

Specifications Sku

WRS05B2KBSPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

13 lbs | 5.90 kg

Specifications Wetted Moc

PVDF - Kynar

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
