S05 Non-Metallic Top Discharge Diaphragm Pump
S05 Non-Metallic Top Discharge Diaphragm Pump
SKU:PRO-292b5c
Reliable S05 Non-Metallic Top Discharge Diaphragm Pump for portable use with solid handling up to 0.125 inches. Constructed with Polypropylene material.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
S05 Non-Metallic Top Discharge Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
S05 Non-Metallic Top Discharge Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S05 Non-Metallic Top Discharge Standard Duty Pump is designed for intermittent and portable use, ideal for moderately abrasive fluids and suspended solids. Constructed with durable Polypropylene material for wetted and non-wetted parts, this diaphragm pump offers reliable performance. With a top discharge porting position and solid handling capability of up to 0.125 inches, this pump is versatile and efficient. It features a displacement per stroke of 0.026 gallons, a max flow rate of 0.026 gallons per minute, and weighs 18 lbs. Accessories and kits available for customization.
Product Specifications
Curves 0

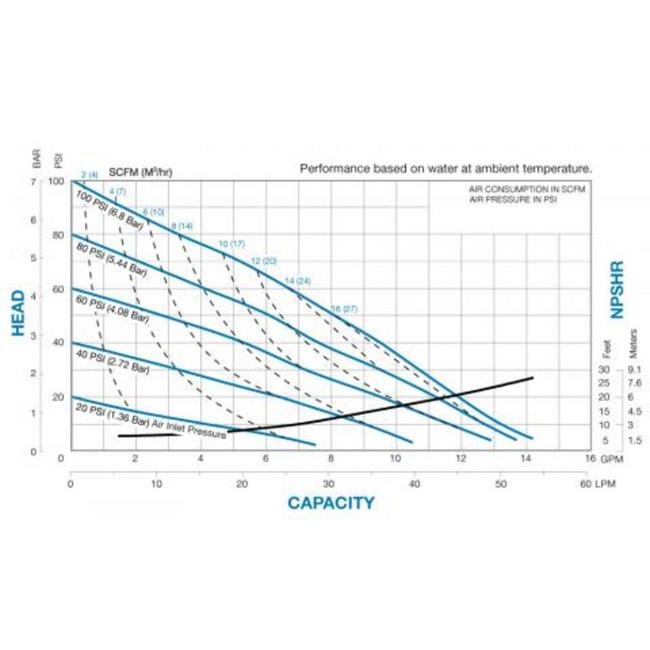

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
.5 NPT in | 13 NPT mm
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0.026 gpm | 1.56 gph | 0.10 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
.5 NPT in | 13 NPT mm
Specifications Porting Position
Top Discharge
Specifications Sku
WRS07B1PBPPNS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Weight
18 lbs | 8.16 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
