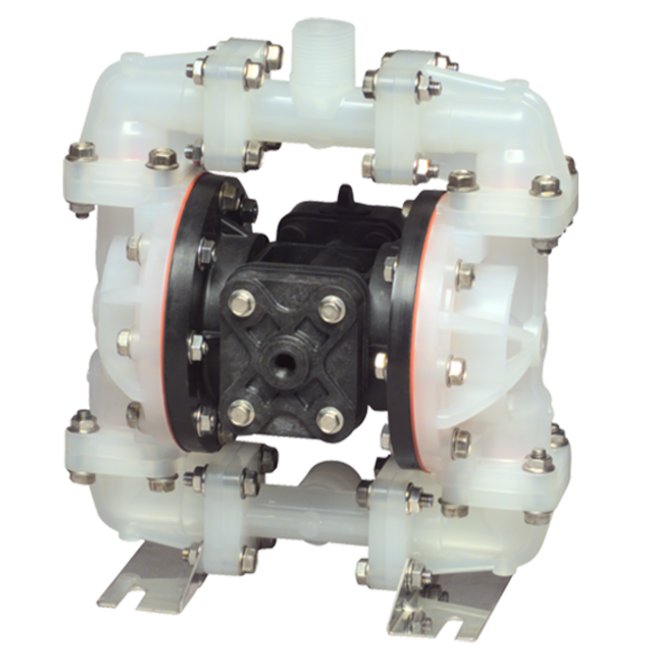

S05 Non-Metallic Top Discharge Standard Duty Pump - Polypropylene

Name: S05 Non-Metallic Top Discharge Standard Duty Pump - Polypropylene
Brand: Springer Pumps, LLC
SKU: PRO-6ca3be
Price: 499.99 USD
Availability: OutOfStock

SKU:PRO-6ca3be

Durable S05 Standard Duty Pump for abrasive fluids & solids, Polypropylene construction for corrosion resistance, ideal for waste water applications.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Non-Metallic Top Discharge Standard Duty Pump is a reliable solution for handling moderately abrasive fluids and solids. Constructed with Polypropylene, this pump offers durability and corrosion resistance. With a max flow rate of 0.026 gpm, it efficiently handles waste water applications. The Polypropylene construction ensures compatibility with various chemicals. Suitable for both portable and intermittent use, this pump is a robust choice for institutional and industrial settings.

Product Specifications

Curves 0

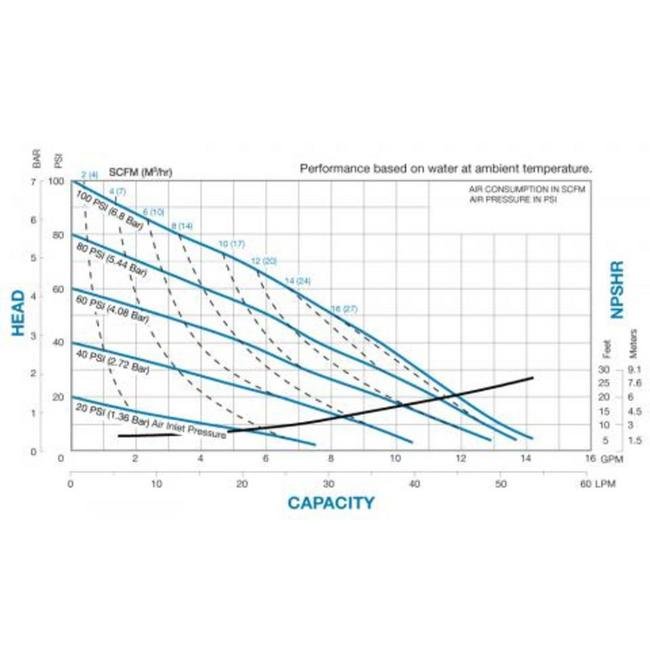

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Customs Code

HS Code 84131900

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

.5 NPT in | 13 NPT mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0.026 gpm | 1.56 gph | 0.10 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

.5 NPT in | 13 NPT mm

Specifications Porting Position

Top Discharge

Specifications Sku

WRS07B1PUPPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

14 lbs | 6.35 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Non-Metallic Top Discharge Standard Duty Pump - Polypropylene
