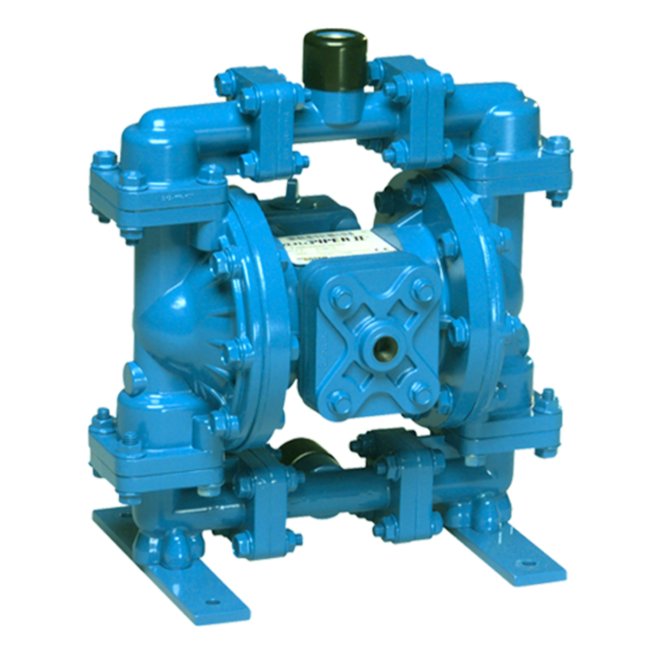

The S05 Top Discharge Metallic Ball Valve Diaphragm Pump is designed for portable applications handling moderately abrasive fluids and suspended solids effectively. With options for TPE and PTFE diaphragms and check valves, this pump offers reliable performance. It features a ball check valve, aluminum wetted material, Santoprene elastomers, and UHMW Polyethylene check valve seat. Ideal for standard duty operations, this pump ensures efficient fluid handling and easy maintenance.
Product Specifications
Curves 0

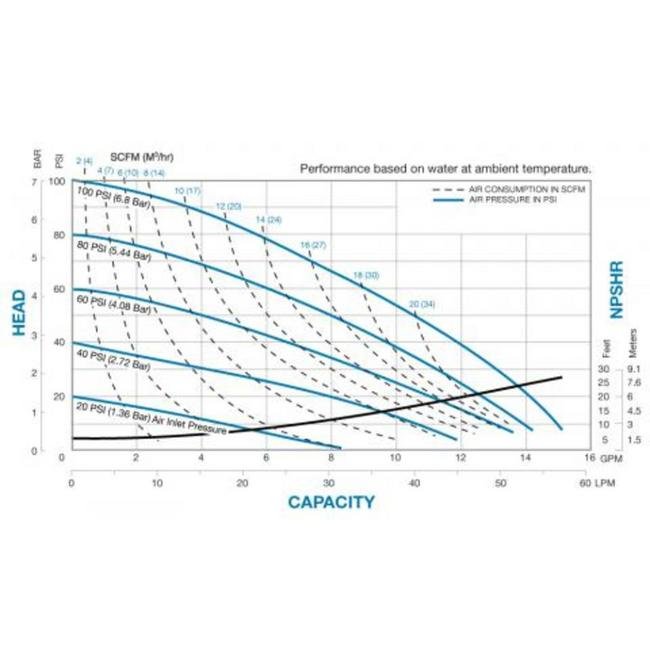

Performance Curves
Specifications Check Valve Seat
UHMW Polyethylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene®/Santoprene®
Specifications Height
11 in | 274.64 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Length
10 in | 260.35 mm
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B1A1WANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
15 lbs | 7 kg
Specifications Wetted Moc
Aluminum
Specifications Width
7 in | 185.74 mm
Category 6
Standard Duty Diaphragm Pumps
