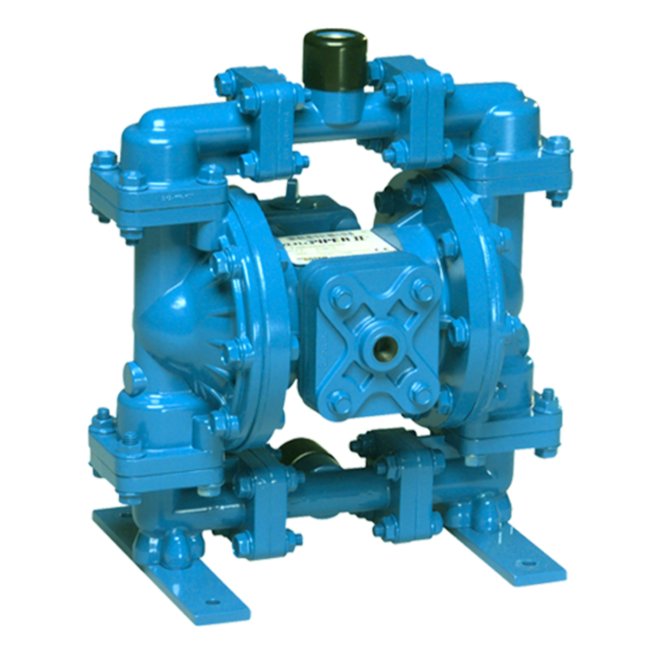

S05 Top Discharge Metallic Ball Valve Diaphragm Pump
S05 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-3e3ee0
Reliable S05 Top Discharge Metallic Ball Valve Pump for portable abrasive fluid handling. TPE and PTFE options for maximum performance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
S05 Top Discharge Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
S05 Top Discharge Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S05 Top Discharge Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand use with portable moderately abrasive fluids and suspended solids. Featuring TPE and PTFE diaphragm and check valve options, this pump ensures reliable performance. Its durable aluminum construction and Buna/Buna elastomers make it ideal for standard duty applications. With a max flow rate of 15 gpm and solid handling up to 0.125 inches, this pump delivers efficient operation in water, wastewater, sump, and utility settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

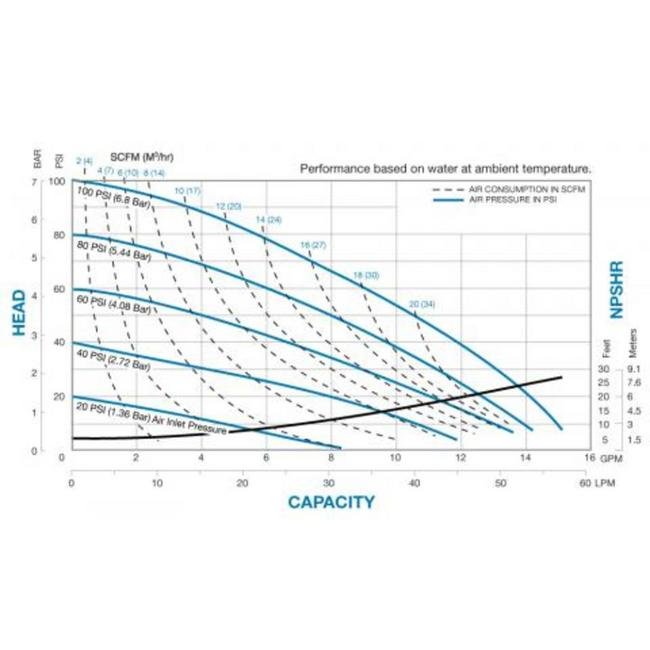

Performance Curves
Specifications Check Valve Seat
UHMW Polyethylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Buna/Buna
Specifications Height
11 in | 274.64 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Length
10 in | 260.35 mm
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B1ABWANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
15 lbs | 7 kg
Specifications Wetted Moc
Aluminum
Specifications Width
7 in | 185.74 mm
Category 6
Standard Duty Diaphragm Pumps
