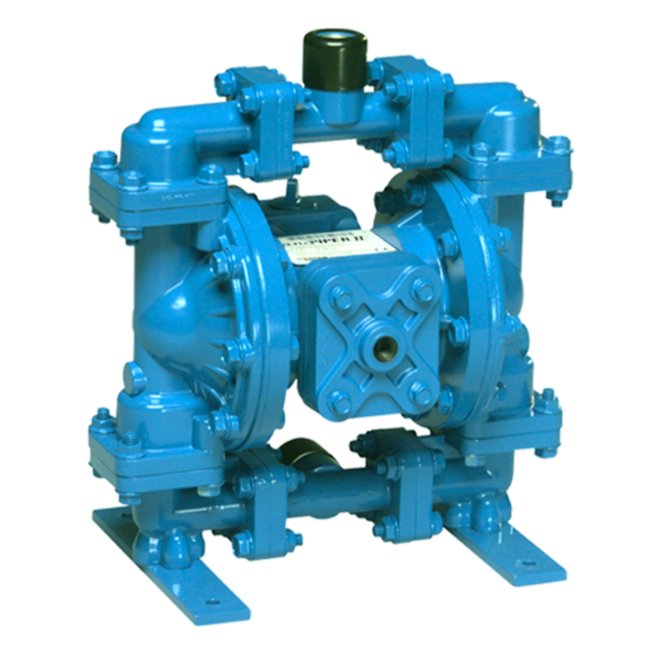

S05 Top Discharge Metallic Ball Valve Pump - Air Powered Diaphragm Pump

Name: S05 Top Discharge Metallic Ball Valve Pump - Air Powered Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-254d43
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-254d43

Reliable and durable S05 Top Discharge Metallic Ball Valve Pump for abrasive fluids and suspended solids.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Top Discharge Metallic Ball Valve Pump is an ideal solution for intermittent and portable applications handling moderately abrasive fluids and suspended solids. Equipped with TPE and PTFE options, this pump ensures reliable performance. With features like a ball check valve, PTFE components, and aluminum construction, it meets high durability and efficiency standards. Recommended accessories are available separately, ensuring maximum operational flexibility.

Product Specifications

Curves 0

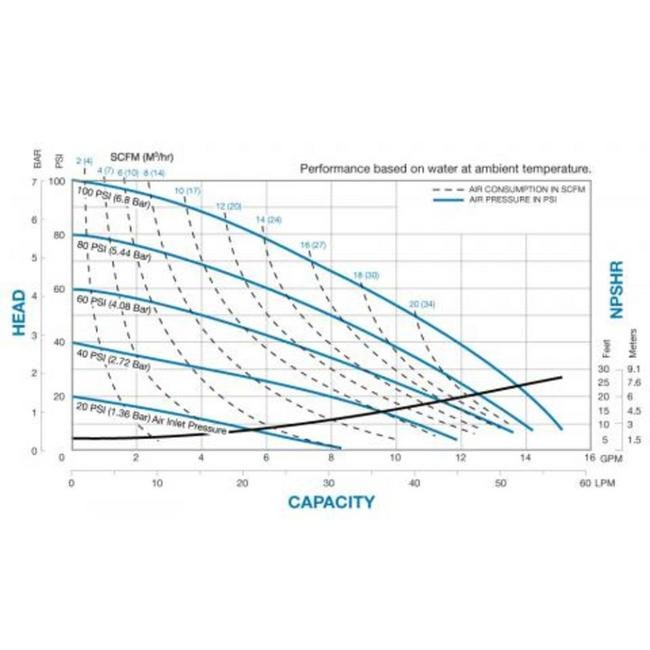

Performance Curves

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

PTFE - Santoprene/PTFE

Specifications Height

11 in | 274.64 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Intake Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Length

10 in | 260.35 mm

Specifications Max Flow Rate

0 - 15 gpm | 0 - 56 lpm

Specifications Non Wetted Material

Aluminum

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B1A2TANS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

15 lbs | 7 kg

Specifications Wetted Moc

Aluminum

Specifications Width

7 in | 185.74 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Top Discharge Metallic Ball Valve Pump - Air Powered Diaphragm Pump
