S05 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump

Name: S05 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-1e7b72
Price: 649.99 USD
Availability: OutOfStock

SKU:PRO-1e7b72

Reliable S05 Metallic Ball Valve Diaphragm Pump for abrasive fluid pumping. Stainless steel construction, versatile diaphragm options, and efficient operation.

$649.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Metallic Ball Valve Diaphragm Pump is designed for portable, intermittent pumping of moderately abrasive fluids with suspended solids. Featuring TPE and PTFE options for diaphragms and check valves, this pump ensures durability and versatility in handling various applications. With a stainless steel wetted M.O.C., ball check valve, and UHMW Polyethylene check valve seat, it meets stringent standards for reliability and performance. Perfect for water, wastewater, sump, or utility applications, the S05 offers efficient pumping with a maximum flow rate of 15 gpm. Expand its capabilities with Sandpiper® accessory kits for optimal operation.

Product Specifications

Curves 0

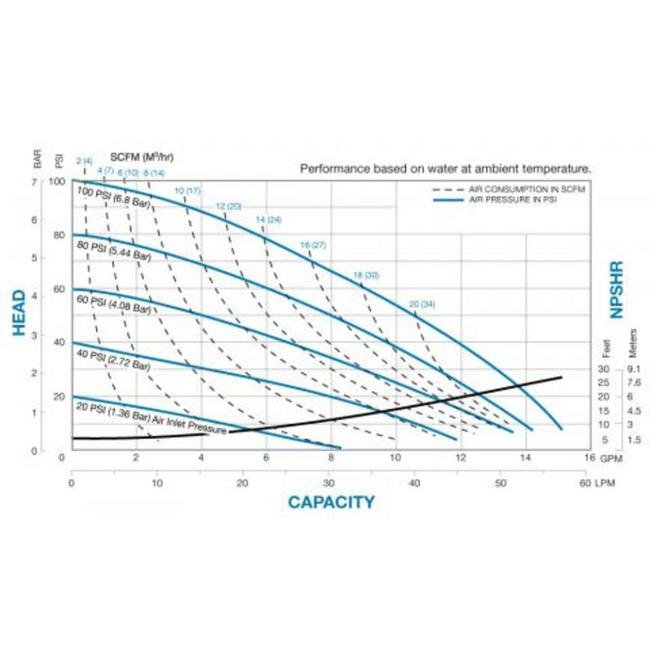

Performance Curves

Specifications Check Valve Seat

UHMW Polyethylene

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Neoprene/Neoprene

Specifications Height

11 in | 267.72 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Intake Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Length

12 in | 292.10 mm

Specifications Max Flow Rate

0 - 15 gpm | 0 - 56 lpm

Specifications Non Wetted Material

Aluminum

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B1SNWANS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

21 lbs | 10 kg

Specifications Wetted Moc

Stainless Steel

Specifications Width

7 in | 185.74 mm
