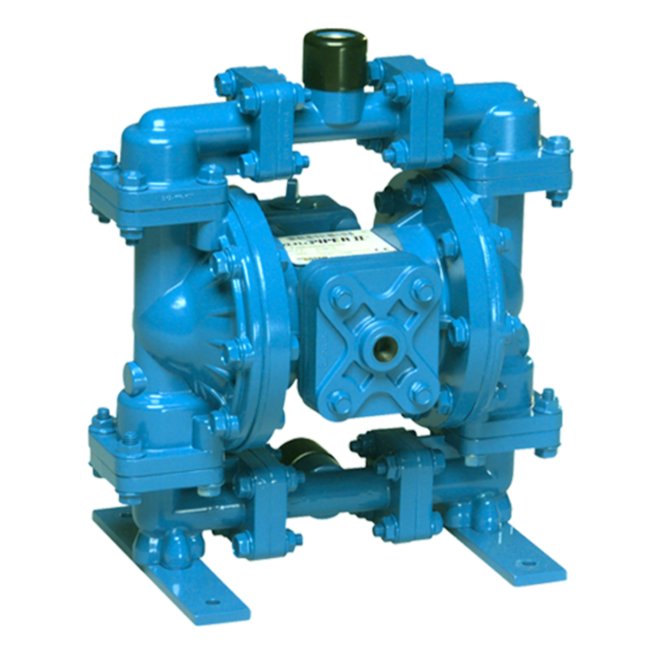

S05 Top Discharge Metallic Ball Valve Pump - Stainless Steel Diaphragm
S05 Top Discharge Metallic Ball Valve Pump - Stainless Steel Diaphragm
SKU:PRO-086f23
Versatile S05 Metallic Ball Valve Diaphragm Pump for portable use with abrasive fluids. Stainless steel construction, TPE/PTFE options, standard duty, up to 15 gpm flow rate.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
S05 Top Discharge Metallic Ball Valve Pump - Stainless Steel Diaphragm
$689.99
Quantity: 1
Claim Your Seller Account
S05 Top Discharge Metallic Ball Valve Pump - Stainless Steel Diaphragm
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S05 Metallic Ball Valve Diaphragm Pump is designed for intermittent/portable use with moderately abrasive fluids and solids. Featuring stainless steel wetted parts, this pump offers durability and reliability. With options for TPE and PTFE diaphragms and check valves, it ensures versatile compatibility. This air-powered double diaphragm pump excels in standard duty applications, handling up to 0.125" solids and delivering a flow rate of 0 - 15 gpm. Ideal for water, wastewater, and sump utility tasks, it combines performance with robust construction.
Product Specifications
Curves 0

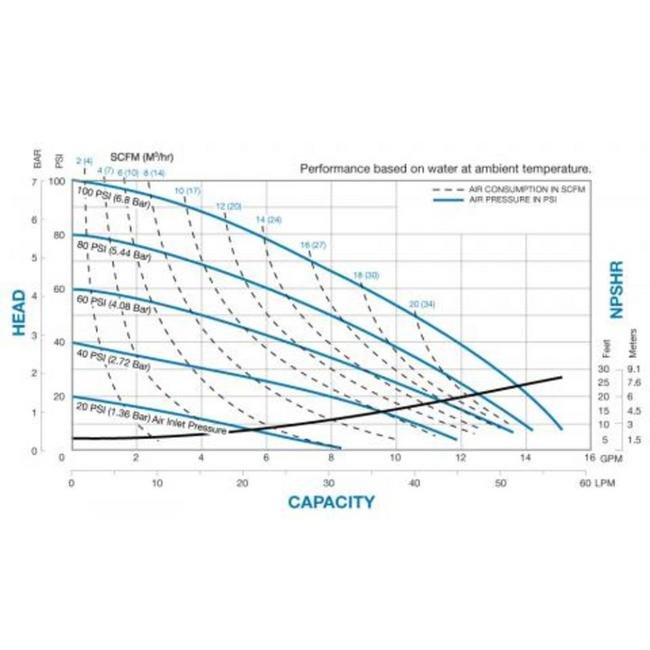

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
One Piece PTFE/PTFE
Specifications Height
11 in | 267.72 mm
Specifications Inlet Size
0.5 NPT in | 13 NPT mm
Specifications Intake Pipe Size Internal
1/2" BSPT | 1/2" NPT
Specifications Length
12 in | 292.10 mm
Specifications Max Flow Rate
0 - 15 gpm | 0 - 56 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Outlet Size
0.5 NPT in | 13 NPT mm
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS05B1SZTANS000SP
Specifications Solids Handling
0.125 in | 3 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
21 lbs | 10 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
7 in | 185.74 mm
Category 6
Standard Duty Diaphragm Pumps
