S05 Top Discharge Metallic Ball Valve Pump - Standard Duty

Name: S05 Top Discharge Metallic Ball Valve Pump - Standard Duty
Brand: Springer Pumps, LLC
SKU: PRO-0bfa4c
Price: 899.99 USD
Availability: OutOfStock

SKU:PRO-0bfa4c

Reliable S05 Metallic Ball Valve Diaphragm Pump for abrasive fluids with TPE/PTFE options. Ideal for wastewater handling.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Metallic Ball Valve Diaphragm Pump is engineered for intermittent/on-demand use with moderately abrasive fluids and suspended solids. Featuring TPE and PTFE diaphragm and check valve options, this pump ensures reliable performance. With a stainless steel wetted M.O.C., PTFE elastomers, and a ball check valve, it meets industry standards for durability and efficiency, making it a top choice for wastewater applications.

Product Specifications

Curves 0

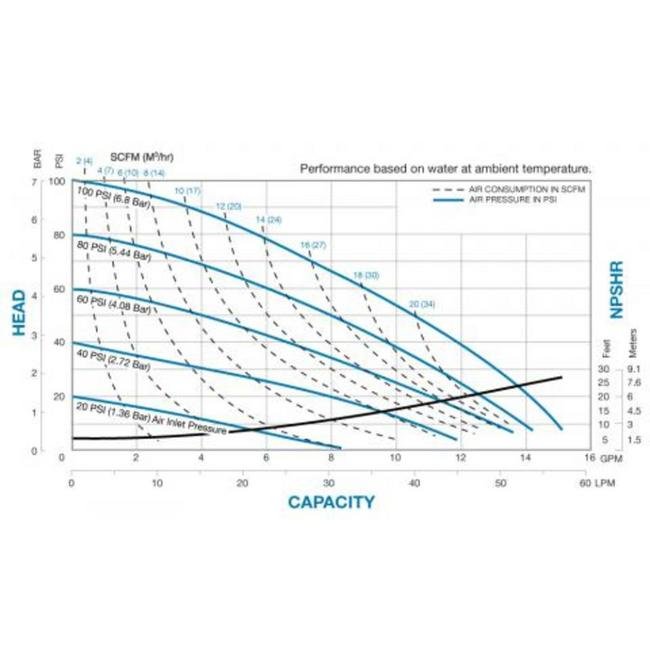

Performance Curves

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

PTFE - Santoprene/PTFE

Specifications Height

11 in | 267.72 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Intake Pipe Size Internal

1/2" BSPT | 1/2" NPT

Specifications Length

12 in | 292.10 mm

Specifications Max Flow Rate

0 - 15 gpm | 0 - 56 lpm

Specifications Non Wetted Material

Aluminum

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS05B1S2TANS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

21 lbs | 10 kg

Specifications Wetted Moc

Stainless Steel

Specifications Width

7 in | 185.74 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Top Discharge Metallic Ball Valve Pump - Standard Duty
