S05 Top Discharge Non-Metallic Ball Valve Pump - Corrosion Resistant

Name: S05 Top Discharge Non-Metallic Ball Valve Pump - Corrosion Resistant
Brand: Springer Pumps, LLC
SKU: PRO-c5a319
Price: 899.99 USD
Availability: OutOfStock

SKU:PRO-c5a319

Reliable S05 Top Discharge Non-Metallic Ball Valve Pump for corrosive fluids and suspended solids. Maximum 14 gpm flow rate.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

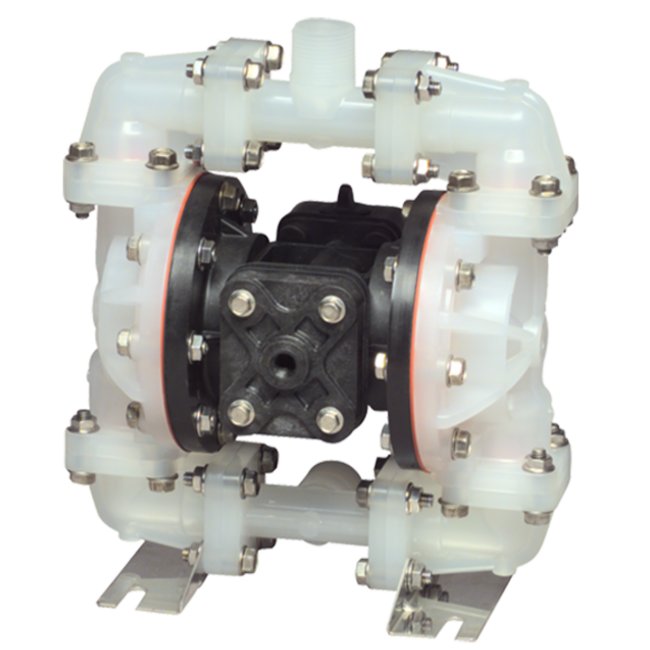

The S05 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids, intermittent use, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and efficiency. With a maximum flow rate of 14 gpm, 1.25" solids handling capability, and compact design, it offers reliable performance in various applications.

Product Specifications

Curves 0

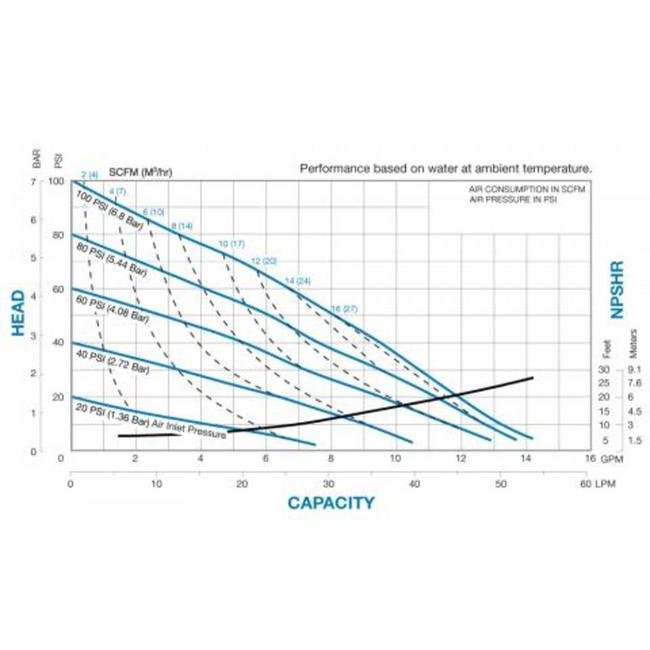

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

11 in | 287.27 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Length

7 in | 179.32 mm

Specifications Max Flow Rate

14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Sku

WRS05B2GZTXNS000SP

Specifications Solids Handling

1.25 in | 32 mm

Specifications Weight

17 lbs | 7.71 kg

Specifications Width

10 in | 257.30 mm

Category 6

Standard Duty Diaphragm Pumps

S05 Top Discharge Non-Metallic Ball Valve Pump - Corrosion Resistant
