S05 Top Discharge Non-Metallic Ball Valve Pump - Corrosion Resistant Diaphragm Pump

Name: S05 Top Discharge Non-Metallic Ball Valve Pump - Corrosion Resistant Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-152c1e
Price: 699.99 USD
Availability: OutOfStock

SKU:PRO-152c1e

Corrosion-resistant S05 diaphragm pump for highly corrosive fluids, with reliable performance and low maintenance.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S05 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids with intermittent/on-demand operations. Constructed with durable TPE and PTFE materials, this pump is ideal for low abrasive fluids and suspended solids. With features like a 0.026 gal displacement per stroke, 0.125 in solids handling capability, and a max flow rate of 14 gpm, it ensures reliable performance in wastewater applications.

Product Specifications

Curves 0

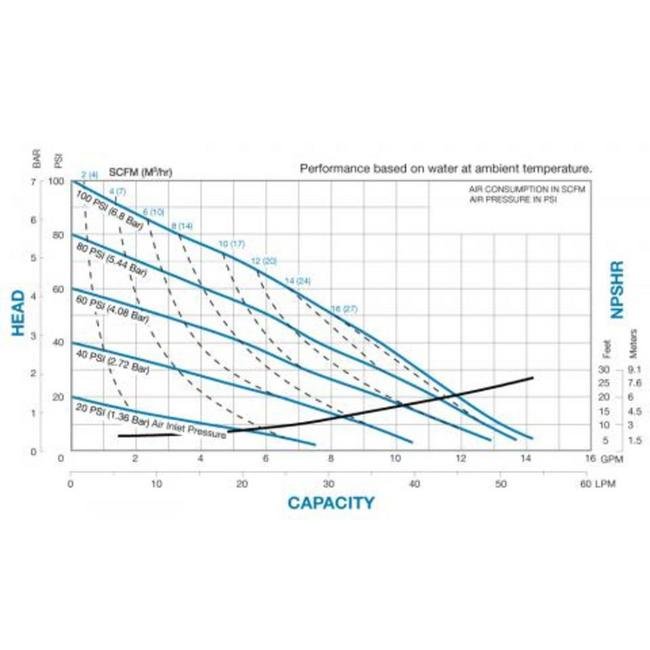

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

12 in | 293.12 mm

Specifications Inlet Size

0.5 NPT in | 13 NPT mm

Specifications Length

10 in | 256.79 mm

Specifications Max Flow Rate

14 gpm | 840.00 gph | 53.00 lpm | 3179.75 lph

Specifications Non Wetted Material

Unpainted Aluminum Conductive Pumps Only

Specifications Outlet Size

0.5 NPT in | 13 NPT mm

Specifications Sku

WRS05B2GBTXNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

16 lbs | 7.26 kg

Specifications Wetted Moc

Conductive Acetal

Specifications Width

7 in | 181.10 mm

Category 6

Standard Duty Diaphragm Pumps
