S07 Non-Metallic Ball Valve Diaphragm Pump

Name: S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-f2c8c3
Price: 599.99 USD
Availability: OutOfStock

SKU:PRO-f2c8c3

Reliable S07 Non-Metallic Ball Valve Pump for corrosive fluids & suspended solids. Ideal for industrial use.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

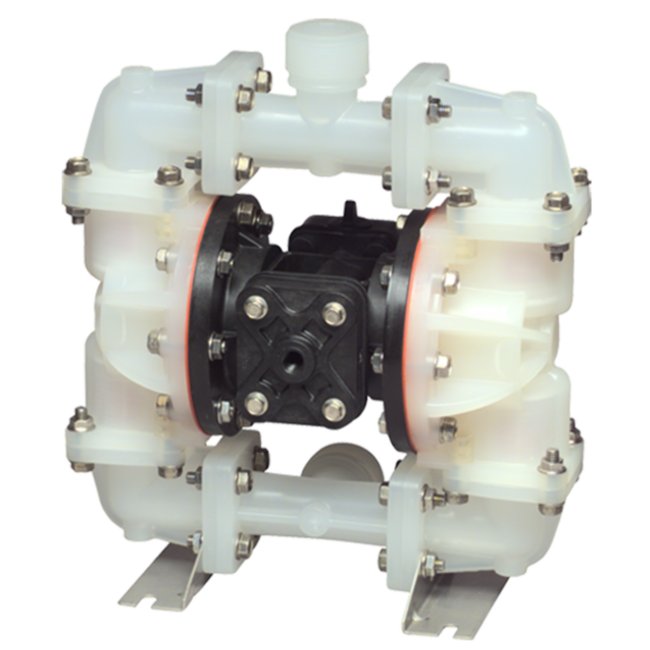

The S07 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids, intermittent use, and low abrasive fluids with suspended solids. Constructed with TPE and PTFE diaphragms, it offers exceptional durability. With an inlet size of 0.75 BSP, a maximum flow rate of 23 gpm, and a weight of 17 lbs, this pump delivers reliable performance in demanding industrial environments.

Product Specifications

Curves 0

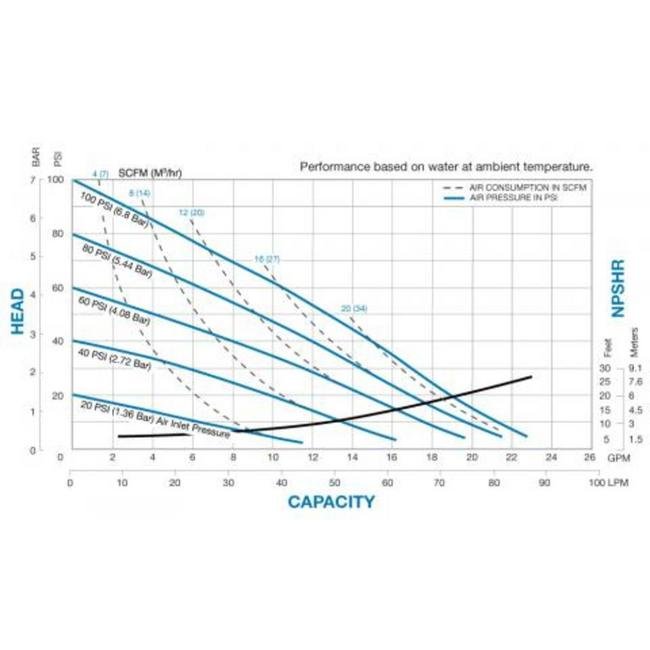

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

0.75 BSP Tapered Threads in | 19 BSP Tapered Threads mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS07B1PZPPBS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Weight

17 lbs | 7.71 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

S07 Non-Metallic Ball Valve Diaphragm Pump
