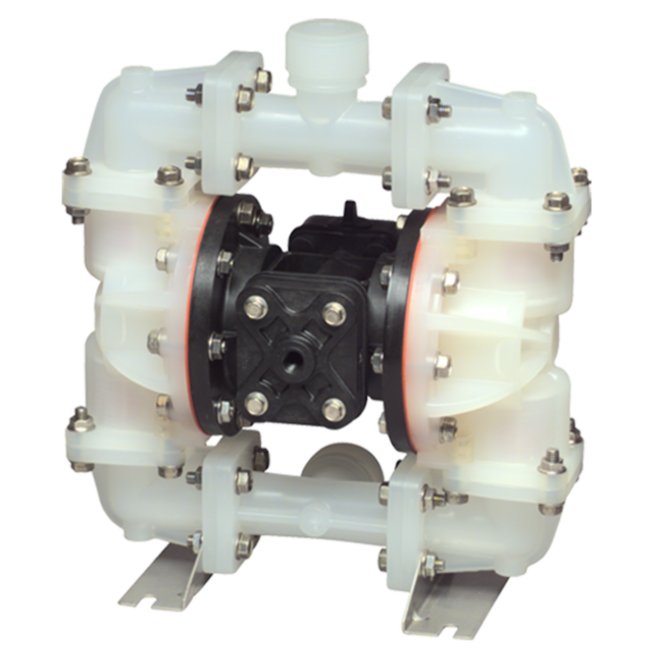

S07 Non-Metallic Ball Valve Diaphragm Pump

Name: S07 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-7e0789
Price: 789.99 USD
Availability: OutOfStock

SKU:PRO-7e0789

Reliable S07 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids. Suitable for waste water applications.

$789.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S07 Top Discharge Non-Metallic Ball Valve Pump is engineered to handle highly corrosive fluids with ease. Featuring TPE and PTFE construction in diaphragms and check valves, this air-powered double diaphragm pump is perfect for intermittent use, portability, and low-abrasive fluids. With a solid handling capacity of 0.15 inches, and a max flow rate of 23 gpm, this pump is a reliable solution for waste water applications.

Product Specifications

Curves 0

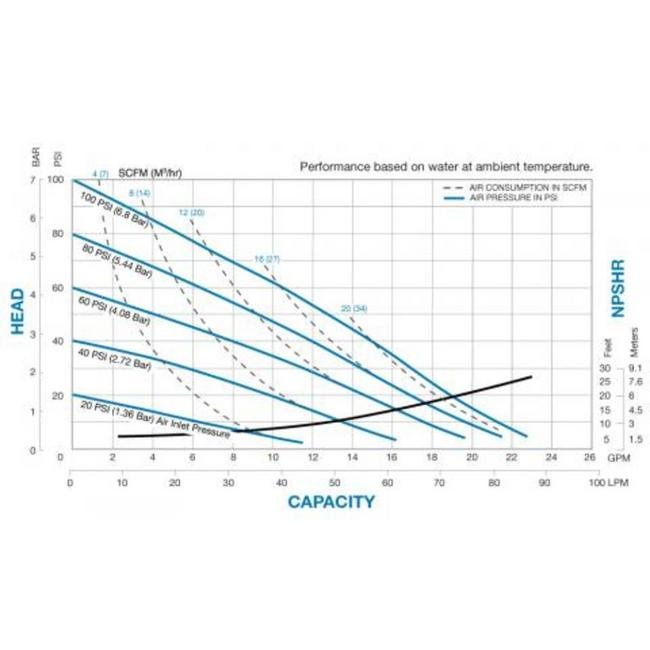

Performance Curves

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Virgin PTFE - Santoprene Backup/Virgin PTFE

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1P2PPNS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

17 lbs | 8 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

S07 Non-Metallic Ball Valve Diaphragm Pump
