S07 Non-Metallic Ball Valve Diaphragm Pump
S07 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-8dd321
Reliable S07 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids and solids. Features TPE and PTFE construction, PVDF wetted material, and 40% glass-filled polypropylene non-wetted material.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
S07 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
S07 Non-Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

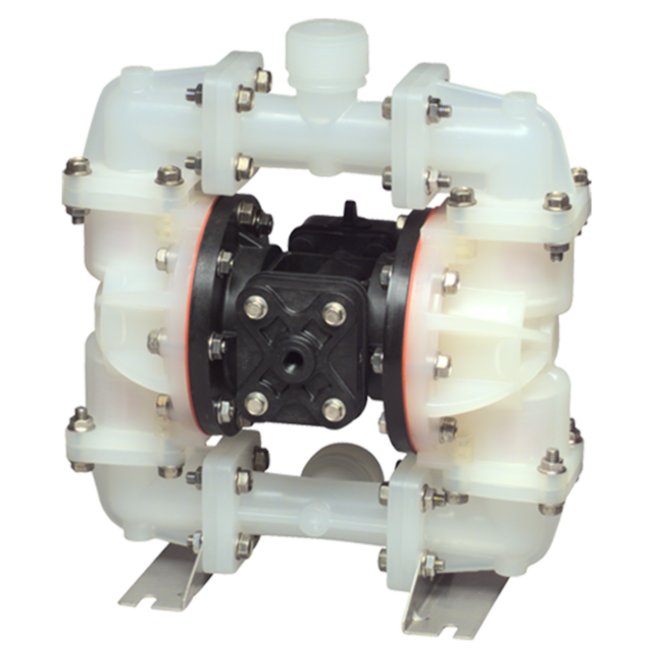

The S07 Top Discharge Non-Metallic Ball Valve Pump is the ideal solution for handling highly corrosive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and efficiency. With a non-metallic PVDF wetted material and 40% glass-filled polypropylene non-wetted material, it offers reliable performance. The pump features an inlet size of 0.5 NPT, can handle solids up to 0.15 inches, and provides a maximum flow rate of 23 gpm. Recommended accessories available separately.
Product Specifications
Curves 0

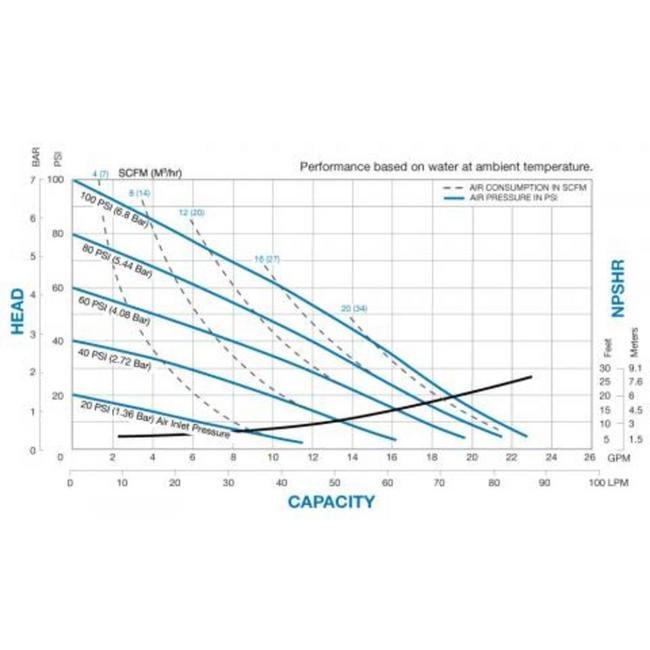

Performance Curves
Specifications Customs Code
ECCN Code 2B350.i
Specifications Displacement Per Stroke
0.026 gal | 0.10 lit
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
0.5 NPT Threads in | 13 NPT Threads mm
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS07B1KZKPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Weight
21 lbs | 9.53 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
