S07 Non-Metallic Ball Valve Diaphragm Pump - Corrosion Resistant
S07 Non-Metallic Ball Valve Diaphragm Pump - Corrosion Resistant
SKU:PRO-b22858
Reliable S07 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids & suspended solids.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
S07 Non-Metallic Ball Valve Diaphragm Pump - Corrosion Resistant
$789.99
Quantity: 1
Claim Your Seller Account
S07 Non-Metallic Ball Valve Diaphragm Pump - Corrosion Resistant
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

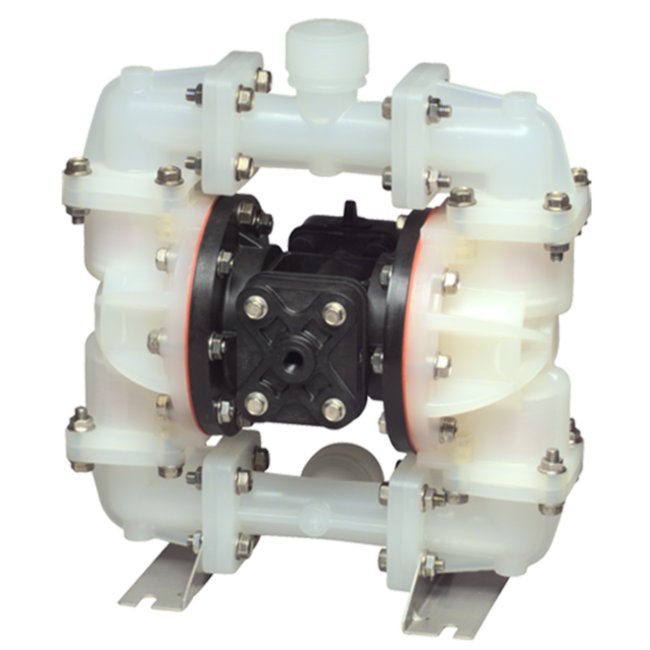

The S07 Top Discharge Non-Metallic Ball Valve Pump is a reliable solution for handling highly corrosive fluids with suspended solids. Constructed with TPE and PTFE diaphragms, this air-powered double diaphragm pump is designed for intermittent, portable use. The nylon construction and ball check valve ensure durability and efficiency. With a maximum flow rate of 23 gpm and a handling capacity of 0.15 inches solids, this pump is ideal for standard duty applications in water and wastewater treatment.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

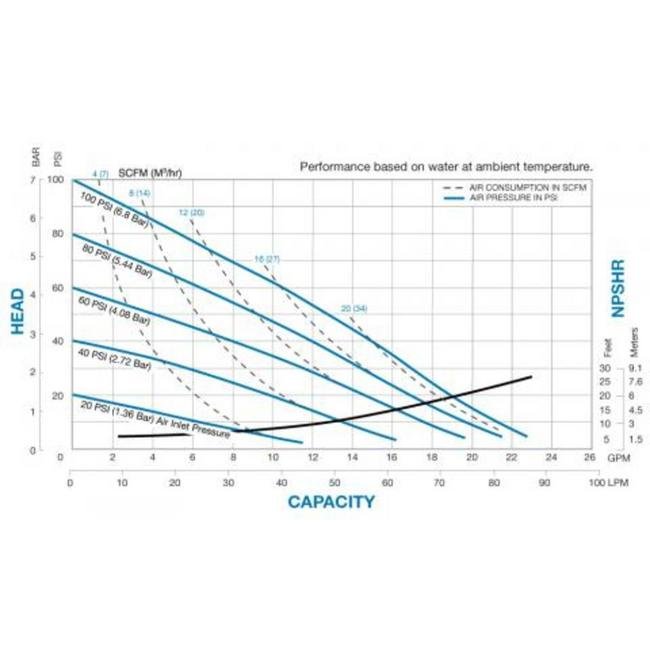

Performance Curves
Specifications Check Valve Seat
Nylon
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07B1N2NPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
18 lbs | 9 kg
Specifications Wetted Moc
Nylon
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
