S07 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
S07 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
SKU:PRO-07df8b
Reliable S07 Non-Metallic Ball Valve Pump for corrosive fluids with suspended solids. Ideal for waste water applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
S07 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
$899.99
Quantity: 1
Claim Your Seller Account
S07 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

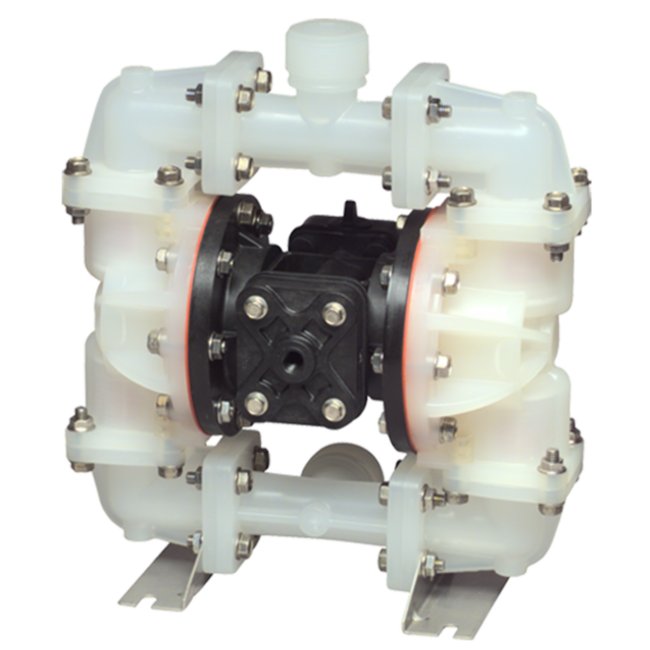

The S07 Top Discharge Non-Metallic Ball Valve Pump is a robust solution for handling highly corrosive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and reliability. With features like a 0.15 in Solids Handling capacity, Air Powered Double Diaphragm design, and PVDF wetted M.O.C., this pump is ideal for waste water applications. Recommended accessories available separately.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

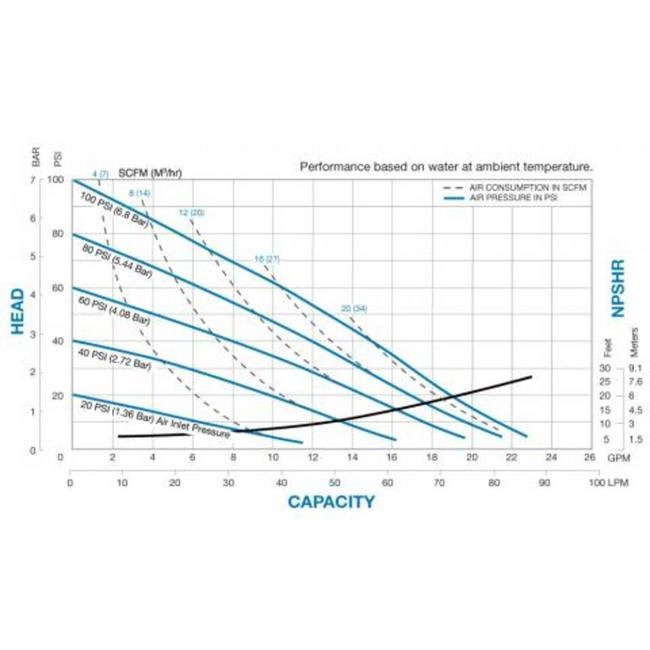

Performance Curves
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Height
13 in | 338.84 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07B1K1KPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
21 lbs | 9.50 kg
Specifications Wetted Moc
PVDF
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
