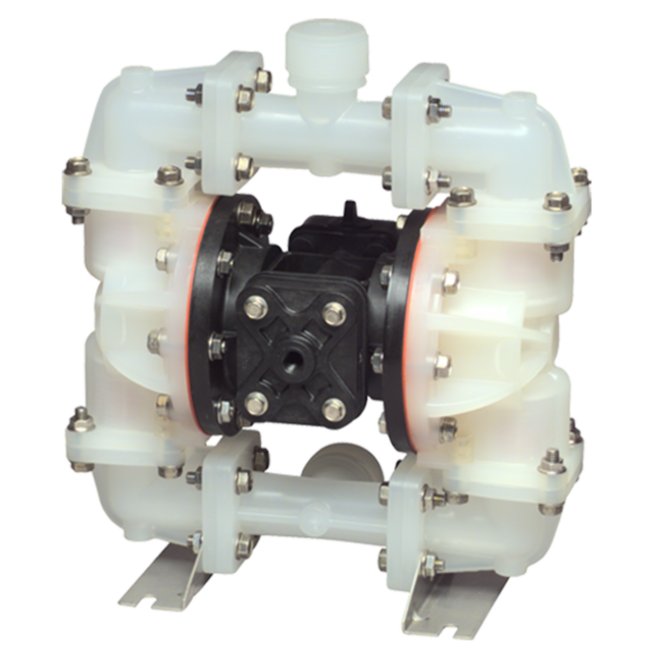

S07 Non-Metallic Trihedral Valve Diaphragm Pump
S07 Non-Metallic Trihedral Valve Diaphragm Pump
SKU:PRO-2d7d36
Reliable S07 Non-Metallic Trihedral Valve Diaphragm Pump for corrosive fluid handling. TPE and PTFE construction, 23 gpm flow rate.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
S07 Non-Metallic Trihedral Valve Diaphragm Pump
$689.99
Quantity: 1
Claim Your Seller Account
S07 Non-Metallic Trihedral Valve Diaphragm Pump
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S07 Non-Metallic Trihedral Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent/on-demand needs, making it ideal for waste water applications. Constructed with TPE and PTFE diaphragms and check valves, this pump offers efficient and reliable performance. With a maximum flow rate of 23 gpm and a polypropylene construction, it ensures durability and optimal functionality.
Product Specifications
Curves 0

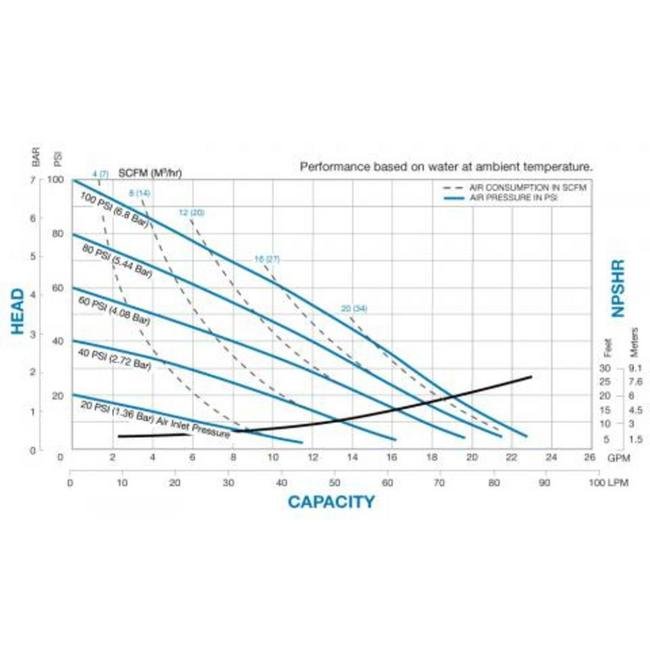

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup Viton®
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07T1P8PPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
17 lbs | 8 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
