S07 Top Discharge Non-Metallic Ball Valve Pump - Reliable Corrosive Fluid Handling

Name: S07 Top Discharge Non-Metallic Ball Valve Pump - Reliable Corrosive Fluid Handling
Brand: Springer Pumps, LLC
SKU: PRO-cb7d1a
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-cb7d1a

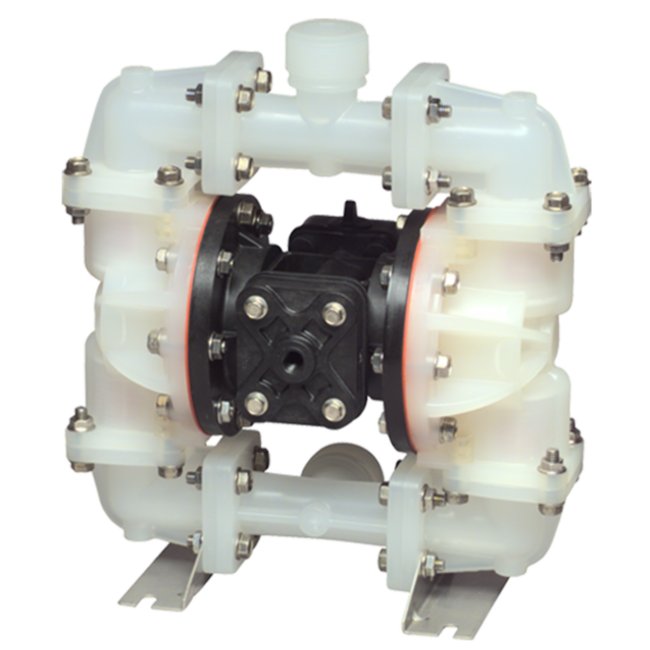

The S07 Top Discharge Non-Metallic Ball Valve Pump: Reliable, Corrosive Fluid Handling Solution

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S07 Top Discharge Non-Metallic Ball Valve Pump is a robust solution for handling highly corrosive fluids with ease. Constructed with TPE and PTFE diaphragms and check valves, this pump is ideal for intermittent, portable, and low abrasive fluid applications. With a reliable double diaphragm design and non-metallic components, it ensures efficient and safe pumping operations. The pump's specifications meet quality standards required for various industrial applications, making it a versatile and durable choice for both consumer and institutional buyers.

Product Specifications

Curves 0

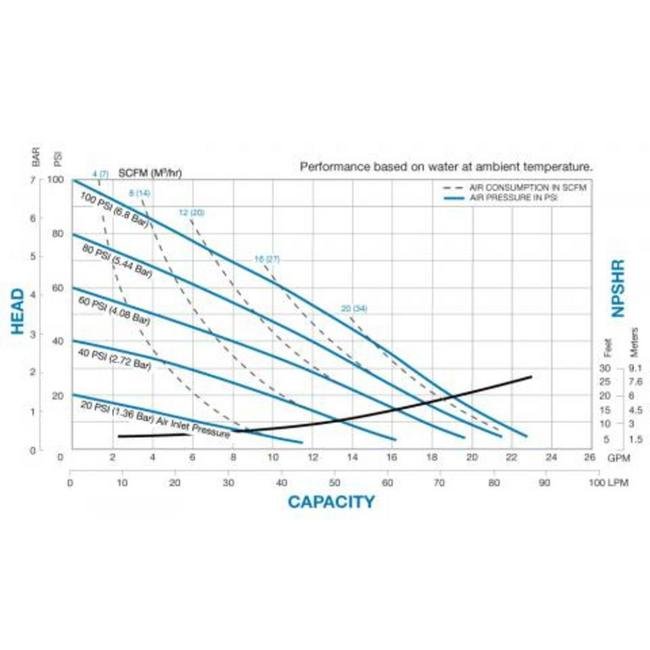

Performance Curves

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code 2B350.i

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Virgin PTFE - Santoprene Backup/Virgin PTFE

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

3/4" NPT-F (BSP)

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1 1/2" NPT-M (BSP)

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS07B1K2KPNS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

21 lbs | 9.50 kg

Specifications Wetted Moc

PVDF

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps
