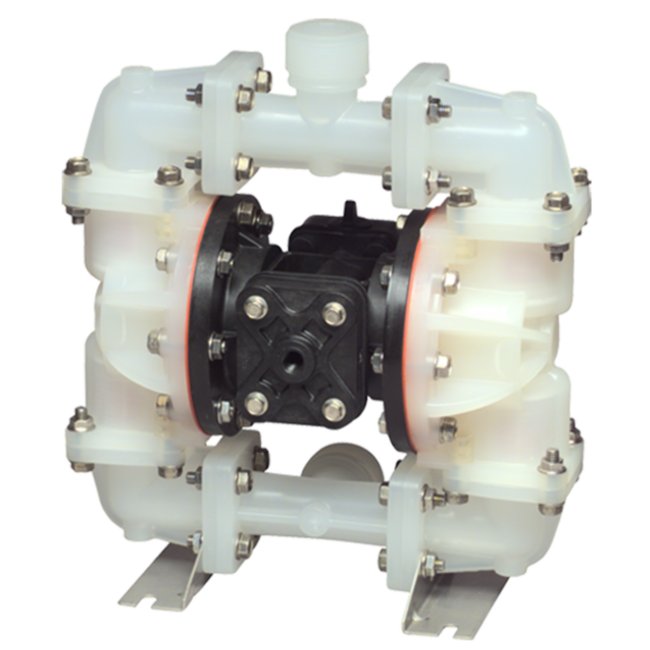

S07 Top Discharge Non-Metallic Ball Valve Pump - Water & Waste Water Diaphragm Pump
S07 Top Discharge Non-Metallic Ball Valve Pump - Water & Waste Water Diaphragm Pump
SKU:PRO-ed1059
Reliable S07 Top Discharge Non-Metallic Ball Valve Pump for corrosive fluids and suspended solids. Air-powered with 23 gpm flow rate.
Regular price
$799.00
Regular price
Sale price
$799.00
Unit price
per
Initiate Order
S07 Top Discharge Non-Metallic Ball Valve Pump - Water & Waste Water Diaphragm Pump
$799.00
Quantity: 1
Claim Your Seller Account
S07 Top Discharge Non-Metallic Ball Valve Pump - Water & Waste Water Diaphragm Pump
$799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S07 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids with suspended solids, making it ideal for intermittent use in portable applications. Constructed with TPE and PTFE components, this air-powered double diaphragm pump offers reliable performance. Features include 3/4" NPT-F inlet, 1 1/2" NPT-M outlet, ball check valve, polypropylene construction, Santoprene/Santoprene elastomers, and a maximum flow rate of 23 gpm. This pump meets standard duty requirements and is suitable for water, wastewater, sump, and utility applications.
Product Specifications
Curves 0

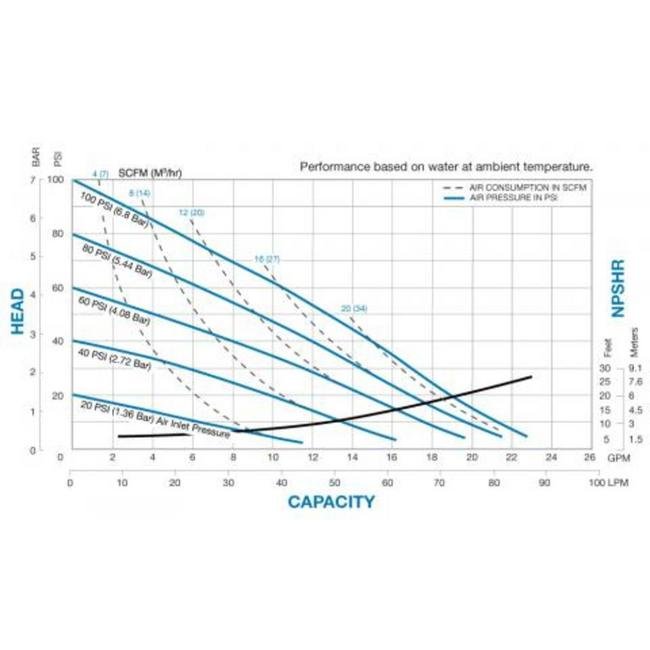

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Santoprene
Specifications Height
13 in | 338.93 mm
Specifications Inlet Size
3/4" NPT-F (BSP)
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1 1/2" NPT-M (BSP)
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS07B1P1PPNS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
17 lbs | 8 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
7 in | 179.39 mm
Category 6
Standard Duty Diaphragm Pumps
