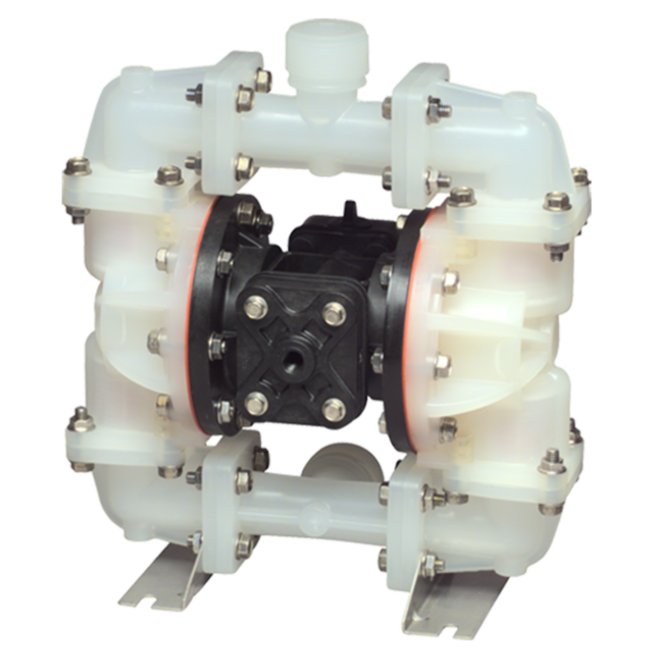

S07 Top Discharge Non-Metallic Diaphragm Pump

Name: S07 Top Discharge Non-Metallic Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-201dfc
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-201dfc

Highly corrosion-resistant diaphragm pump for demanding wastewater applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S07 Top Discharge Non-Metallic Diaphragm Pump is specifically designed for handling highly corrosive fluids and suspended solids, making it an ideal choice for wastewater applications. Constructed with TPE and PTFE materials in diaphragms and check valves, this pump ensures durability and reliability. With an inlet size of 0.75 NPT Threads, it offers a solids handling capacity of up to 0.125 inches and a maximum flow rate of 23 gpm. Its polypropylene construction and non-wetted glass-filled polypropylene components enhance its chemical resistance and longevity, making it suitable for standard duty diaphragm pump applications.

Product Specifications

Curves 0

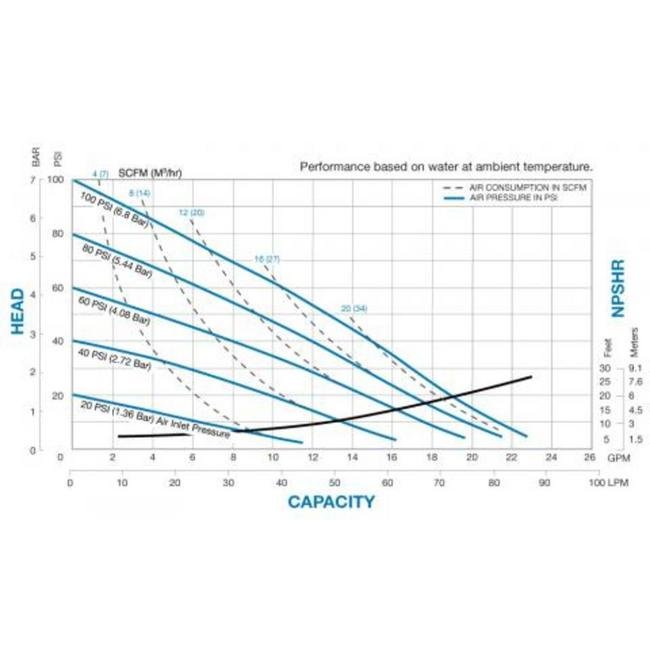

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

13 in | 338.93 mm

Specifications Inlet Size

0.75 NPT Threads in | 19 NPT Threads mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS07T1PBPPNS000SP

Specifications Solids Handling

0.125 in | 3 mm

Specifications Weight

17 lbs | 7.71 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

7 in | 179.39 mm

Category 6

Standard Duty Diaphragm Pumps

S07 Top Discharge Non-Metallic Diaphragm Pump
