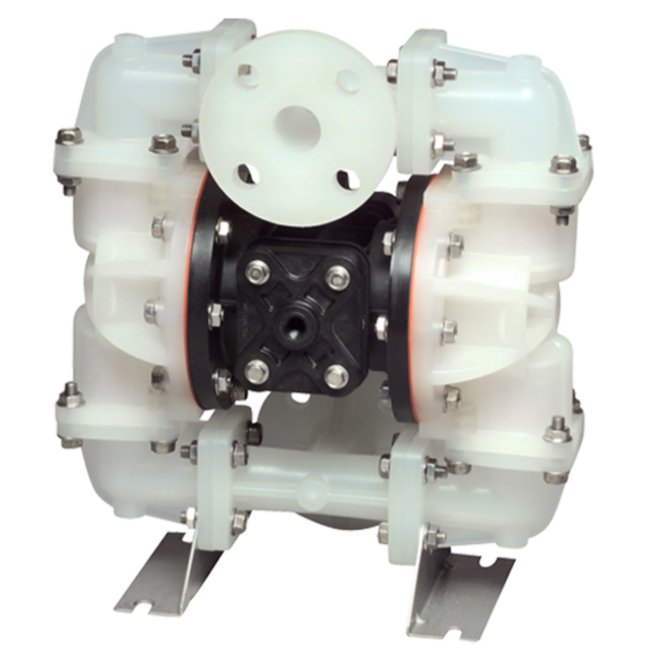

S10 Non-Metallic Ball Valve Diaphragm Pump

Name: S10 Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-23b11f

SKU:PRO-23b11f

Durable and corrosion-resistant S10 Non-Metallic Ball Valve Diaphragm Pump for handling corrosive fluids efficiently.

$699.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S10 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids and low abrasive fluids with suspended solids. Constructed with TPE and PTFE options, it offers exceptional chemical resistance and durability. With a PVDF wetted M.O.C. and 40% Glass Filled Polypropylene non-wetted material, this pump ensures reliable performance in challenging environments. Featuring an ANSI Flange inlet, 0.15 in solids handling capacity, and a max flow rate of 23 gpm, this pump is ideal for standard duty diaphragm pump applications.

Product Specifications

Curves 0

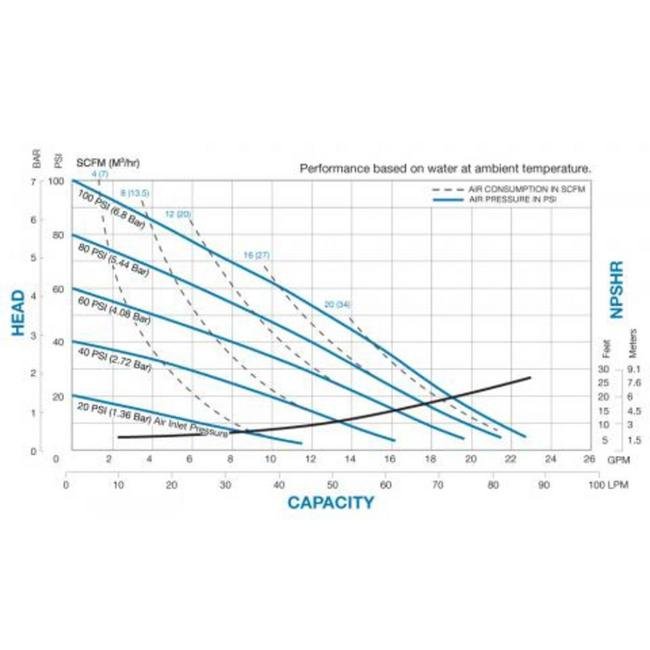

Performance Curves

Specifications Check Valve Seat

NULL

Specifications Check Valve Type

NULL

Specifications Customs Code

ECCN Code 2B350.i

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

14 in | 350.84 mm

Specifications Inlet Size

1 ANSI Flange in | 25 ANSI Flange mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS10B1KZKPAS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Weight

23 lbs | 10.43 kg

Specifications Wetted Moc

PVDF

Specifications Width

8 in | 192.09 mm

Category 6

Standard Duty Diaphragm Pumps

S10 Non-Metallic Ball Valve Diaphragm Pump
